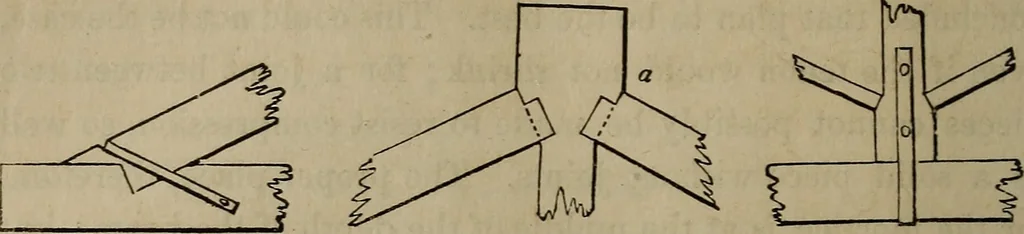

le ; and where it is practicable one piece sliould rest ujponthe other, rather than be framed into it. This remark appliesto the bearing of floor-beams on a girder, to the purlins andjack-rafters of a roof, &c. 425.—In a framed truss for a roof, bridge, partition, &c.,the joints should be… … Fig. 268. Fig. 269. Fig. 270. ting surface on the end of a strut should be at right angles tothe direction of the pressure; as at the joint shown in Fig.268 for the foot of a rafter, (see Art. 277,) in Fig. 269 for thehead of a rafter, and in Fig. 270 for the foot of a strut orbrace. The joint at…
