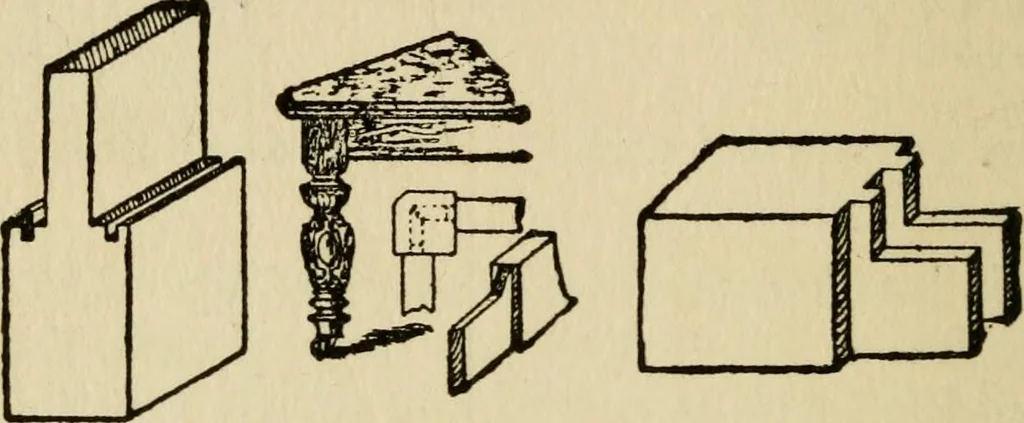

n of the bolection mould planted on the frame isshown in the lower figure. 63 Joints in Woodwork Rafter Joint.—Fig. 159 shows the method of tenoningthe principal rafter to the king post. Roof Joints.—Fig. 160 illustrates the tenoning of thestruts to the king post, and the king post to the tie… … Fig. 163. Tenon with Tongued and Grooved Shoulder, Fig. 164. TableFraming. Fig. 165.Twin Tenons withHaunch, for thickTimber. using a cramp. The joint is made in the usual manner,and a f-in. twist bit is used to bore a hole through piece B.The tenon is driven home and the hole is marked on theside…
