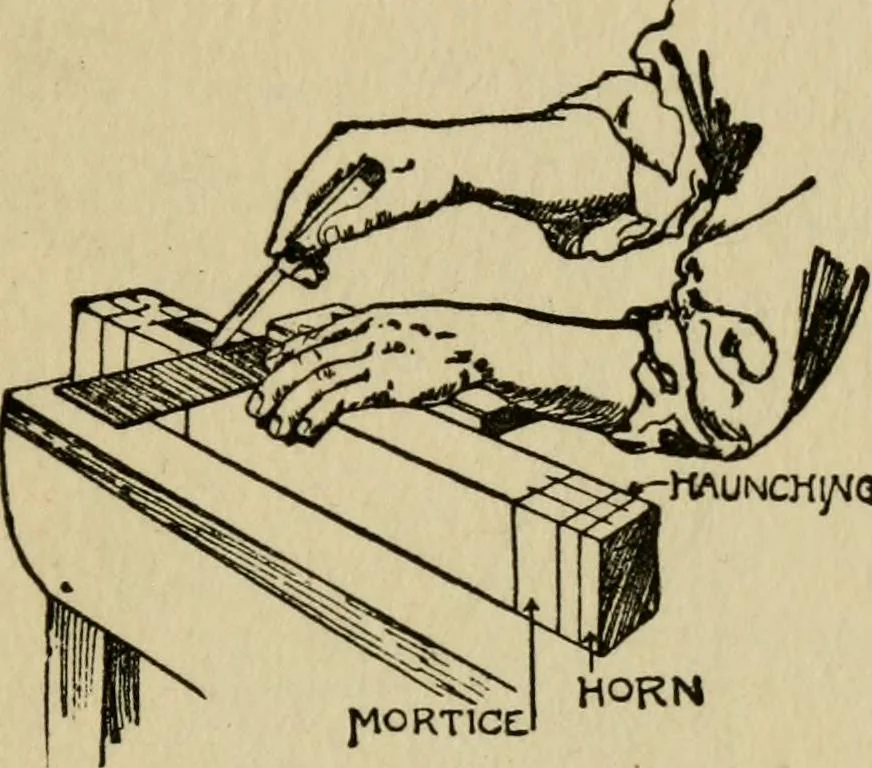

Marking Gauge is now set to the desired width,and gauge lines are marked on the wood, after which the 68 The Mortise and Tenon Joint waste wood is planed off until the timber is the requiredwidth. The thickness is gauged and treated in a similarmanner, except in such cases where the finished work… … MAUNCHySIQ HORN Fig. 176.—Setting Out the Stiles withMarking Knife. the required finished size. This waste wood at each endof the stiles, as shown by the arrow HO, is of importanceto the work, as it prevents to a great extent the burstingof the mortise whilst cutting the hole or when…
