Woolen and worsted finishing; a practical manual of instruction in the methods and machinery used in finishing woolen and worsted goods in general, and the processes involved in the special treatment of all types of standard fabrics (1909)
American School of Correspondence, Timmermann, John F · Chicago, American School of Correspondence · leaf 185

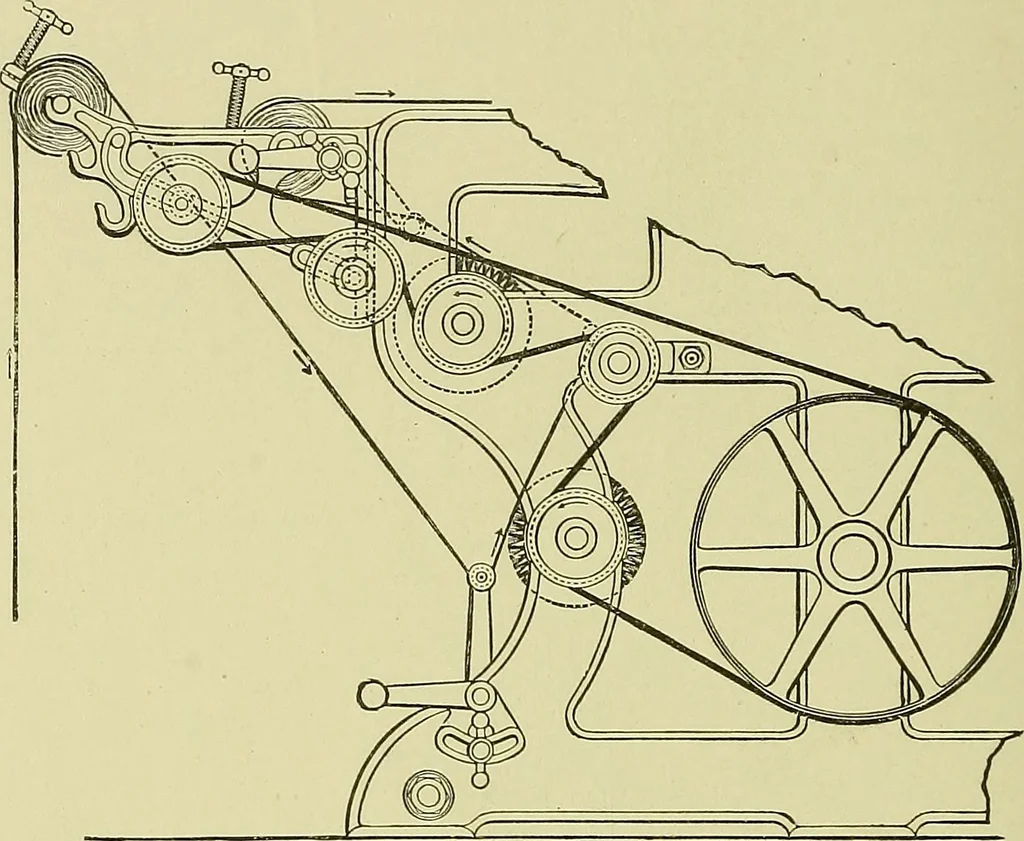

osition of fullpressure shown in Fig. 62. Referring again to Fig. 62, the operation of the parts may bedescribed in detail as follows. The power arm m is pivotally con-nected to the screw-threaded connecting link n^ which, passingthrough the sleeve on top of the rear upright D, is held in place… … Fig. 58. Brush Belting. small handwheel (j. By turning this handwheel when the pressureis let off, the screw link is taken up or let back, thus shortening orlengthening the connections. Hence the amount of pressure ap-plied by turning the shaft Ti over into its locked or pressing posi-tion, is…
Woolen and worsted manufacture · Textile finishing
