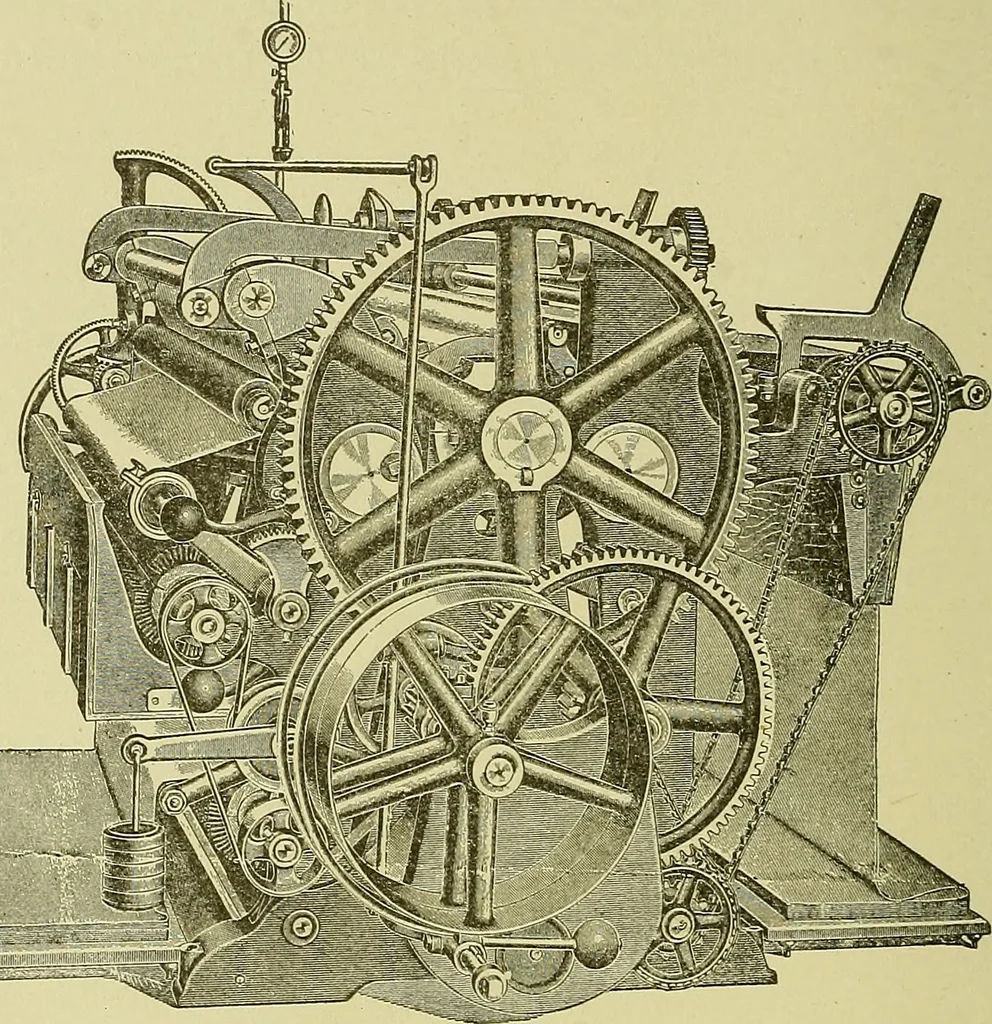

center. 165 158 WOOLEN AND WORSTED FINISHING A sliding coupling -y, held in place by a screw button, connects thetwo sections into which screw shaft j?, is divided. To adjust thepressure at one end without disturbing the other, it is only neces-sary to loosen the bottom and slip the coupling aside,… … Fig. 60 New Century Press When the coupling is reset the shaft again becomes as onepiece, and is then subject to action at both ends simultaneouslyby use of the handwheel q. A dial x having numbers facingtoward both the front and the back, registers each adjustment bymeans of an indicator y…
