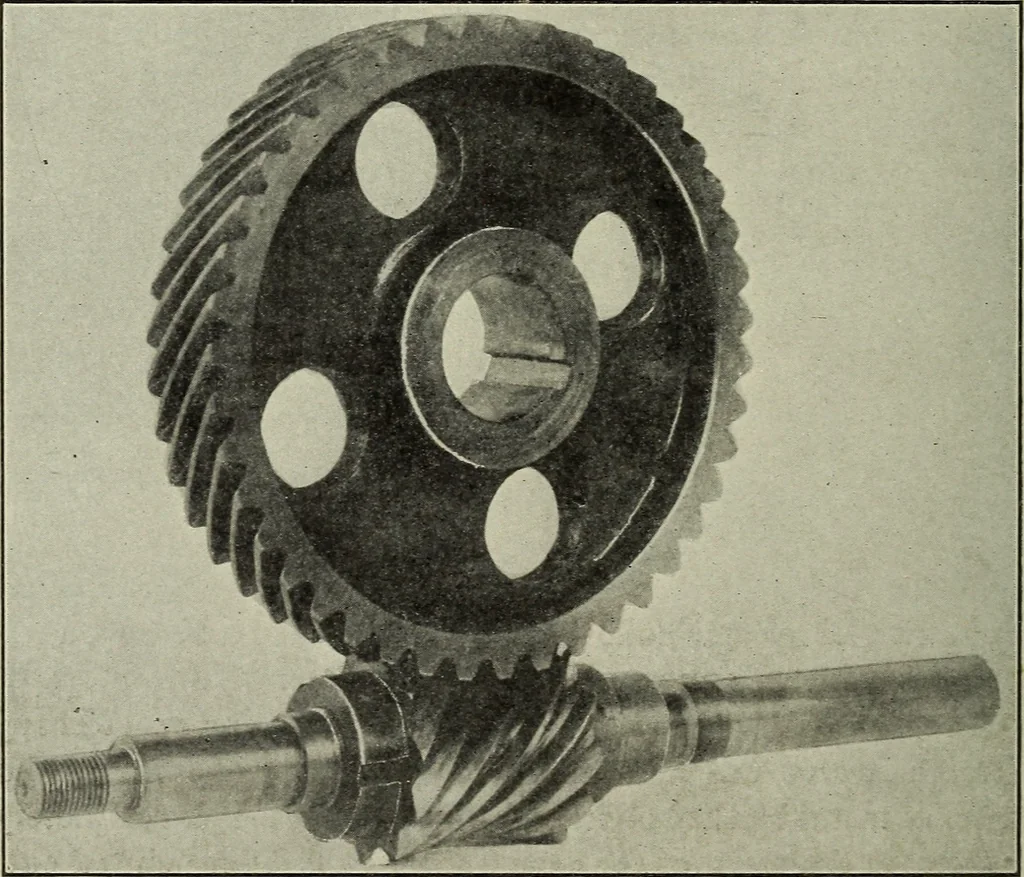

the wheel, the ordinary straight worm,the relative diameters of the two having been reversed from the 30 WORM GEARS usual. Such a gear works well as shown by the experimentalresults. So far. as the authors information goes, however, it isnever used in automobiles. It is, nevertheless, the true… … Fig. 9. The gear first employed by Lanchester is not, however, atruly developed gear at all as both the worm and the wheel arehollow and such a wheel caii only he hobbed ivith a very short hoband driven with an equally short worm. It has, however, thispeculiarity that a section on the center of the…
