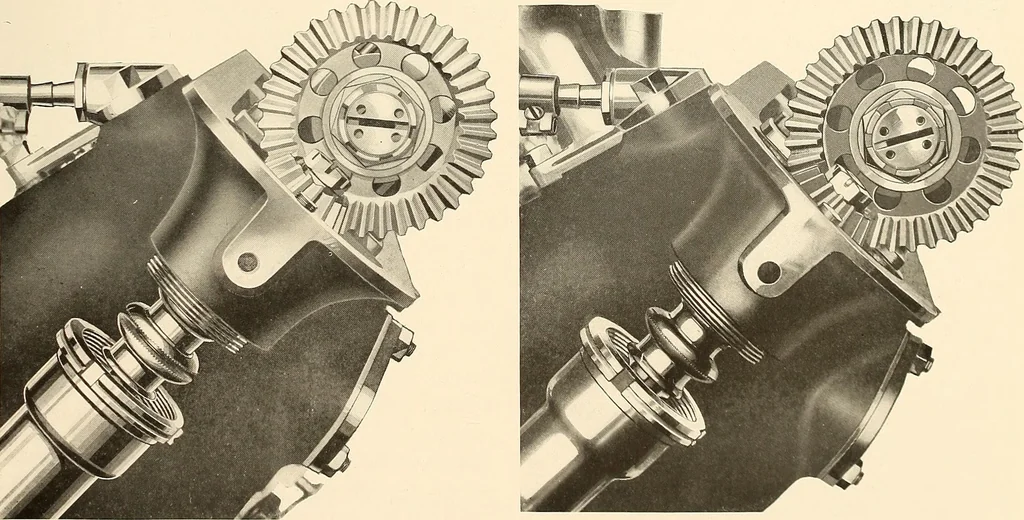

ve. Turn camshaft till the cam of No. 1 left intake valveis just contacting with the tappet, having first checked thetappet clearance with the special gauge. Note that thethick end of the gauge is for use on all the smallerengines, the thin end being for Models H, H-2 and H-3only. Turn crankshaft… … Timing device used on Models E-2 and H-3 engines. Left view shows coupling opened and right view closed in running position. Caution—When adjusting the timing device on vertical shaft always slip the housing down so you may see that the vertical coupling is in proper mesh 68 WRIGHT AERONAUTICAL…
