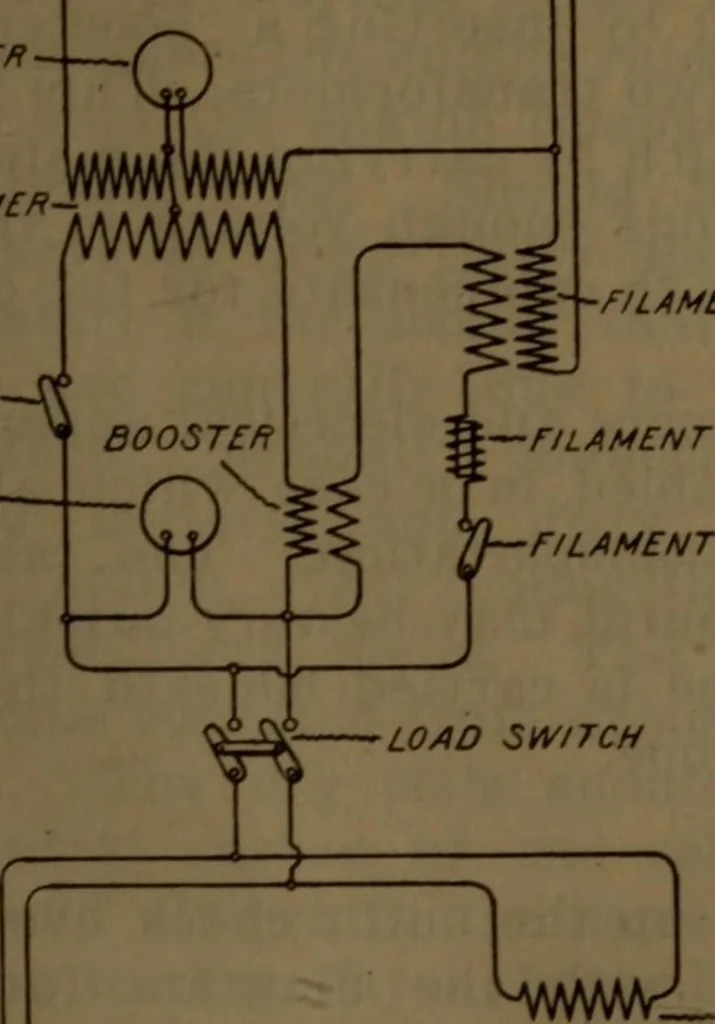

tor. The secondary circuit containsno rectifying device since the tube allows only eachalternate half wave to pass. (See p. 28 for a descriptionof the tube.) Fluoroscopic work is done at 5 M.A. and all radio-graphic work at 10 M A. The maximum operating gap isabout 5 inches, but may be reduced if… … BOOSTERVOL TME TER ——| /^\V r -FILAMENT TRANSFORMER —FILAMENT CONTROLFILAMENT SWITCH COLLFUNGS COMMUTATOR- SLIDINGRESISTANCE j point switch--gJ^HHHH^ L. IGNITION COIL-. SPARK PLUG,GAS ENGINE
