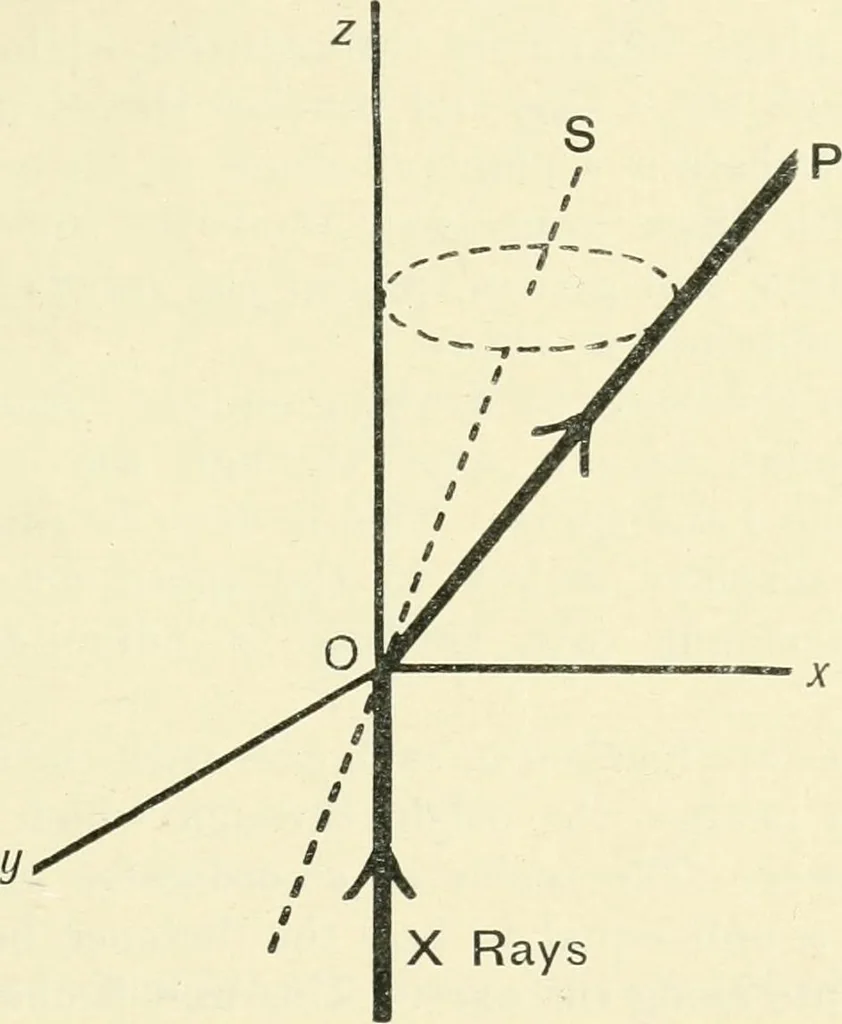

Laue spots is a direct con-sequence of the fact that the incident pencil of X rays isnot strictly parallel but slightly conical, and so the reflectedpencil, which is obliquely received on the photographicplate, shows an elliptical section. Elliptical Loci of Laue Spots. With prolonged exposures,… … Fig. 87.—Construction demonstrating elliptical loci of Laue spots. central spot. These ellipses, which are nearly circular, aresections of circular cones having the incident beam as agenerator. The elliptical locus is a consequence of the factthat the various systems of parallel planes which can…
