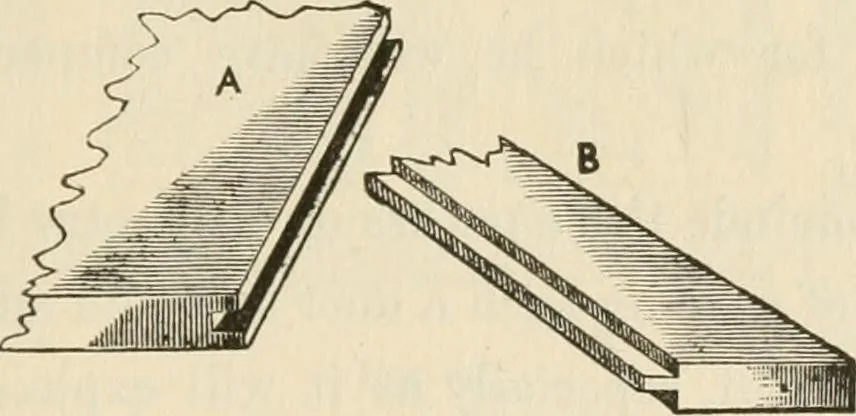

ject of planes, I may as well mention two more—match-planes and beading-planes—to which may be addedthose for moulding, being an extension only of the lastnamed. Match-planes are always in pairs. Their use isto cut, the one a groove, Fig. 39, A, the other a tenon ortongue, or feather, as it is… … Fig. 39. to fit them; either method will answer equally well.When boards joined thus shrink, the tongue or slip fills upspace. There is no necessity for illustrating the planes used for L.GtC. loo THE YOUNG MECHANIC, beading and moulding after the description already givenof others. The irons,…
