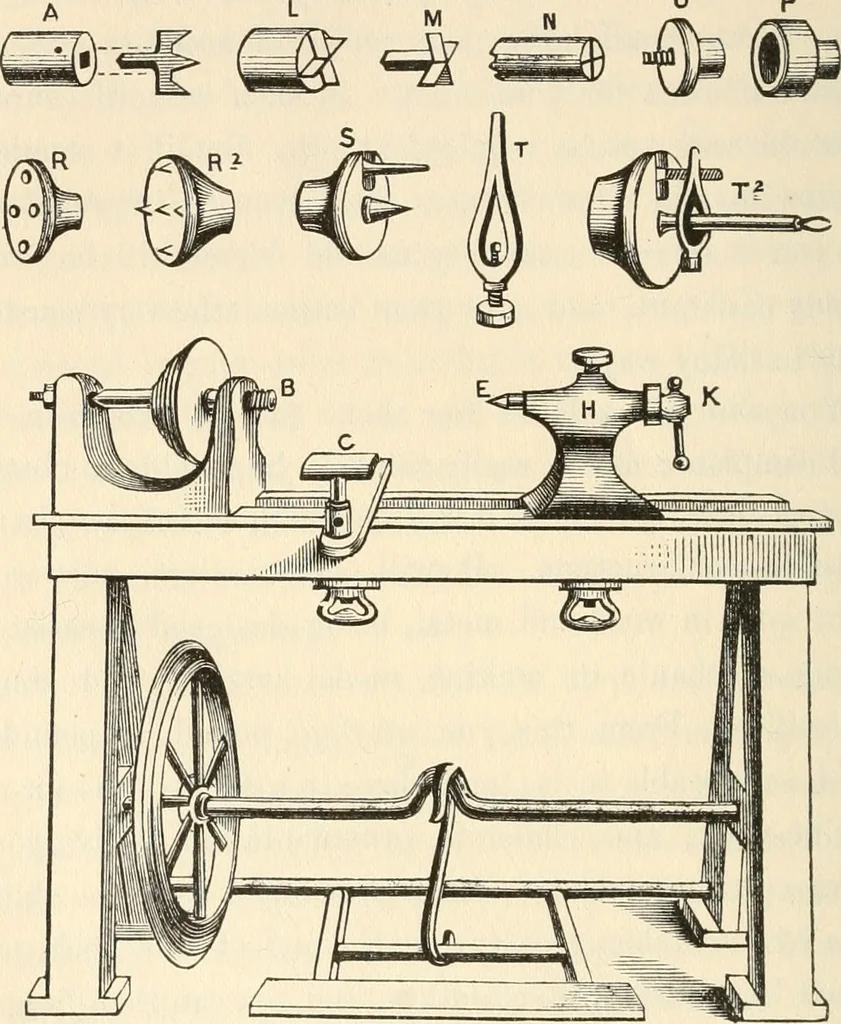

bly I shall be able togive you a catalogue or two at the end of this book, pub-lished by makers of such lathes, and you can then judge ofthe probable cost of your workshop. The drawing of thelathe (Fig. 41) will be readily understood even by thoseboys who have had no opportunity of seeing any work… … Fig. 41. object is to give rotary movement to any material it isdesired to form into a circular or cylindrical shape. Motion being given to the fly-wheel by means of tha THE TURNING-LATHE, 109 treadle and crank, is communicated to the pulley uponthe mandrel. Upon the screw of this mandrel, B, the…
