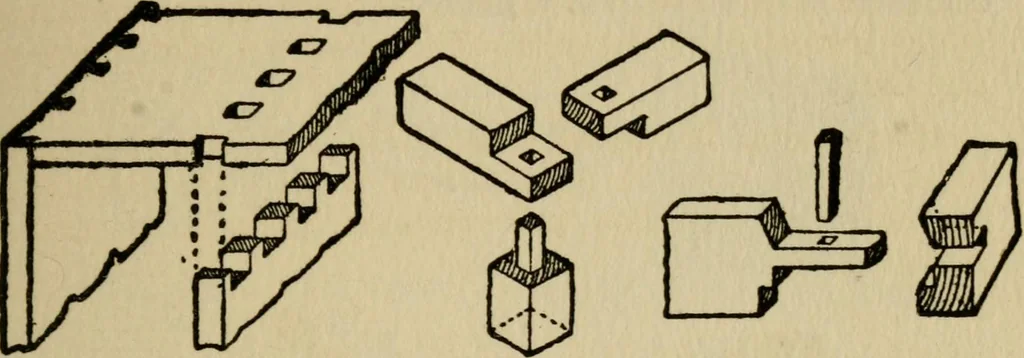

agonally.The tenons and the distance between the tenons are moresatisfactory if made equidistant, because if slight shrinkageoccurs this is partially equalised. The width betweenthe tenons should in no case exceed 3 ins. Top Rails.—At Fig. 150 is shown the method of joiningthe top rails to the post… … Fig. 149.—Pinning. Fig. 150.—JoiningTop Rails ofUpright Post Fig. 151.—TuskTenon. A Tusk Tenon Joint, with wedge, as used to secure thebinder to the girder when making floors, is indicated atFig. 151. The tenon here is narrow, and engages with themortise, which is situated in the compressional…
