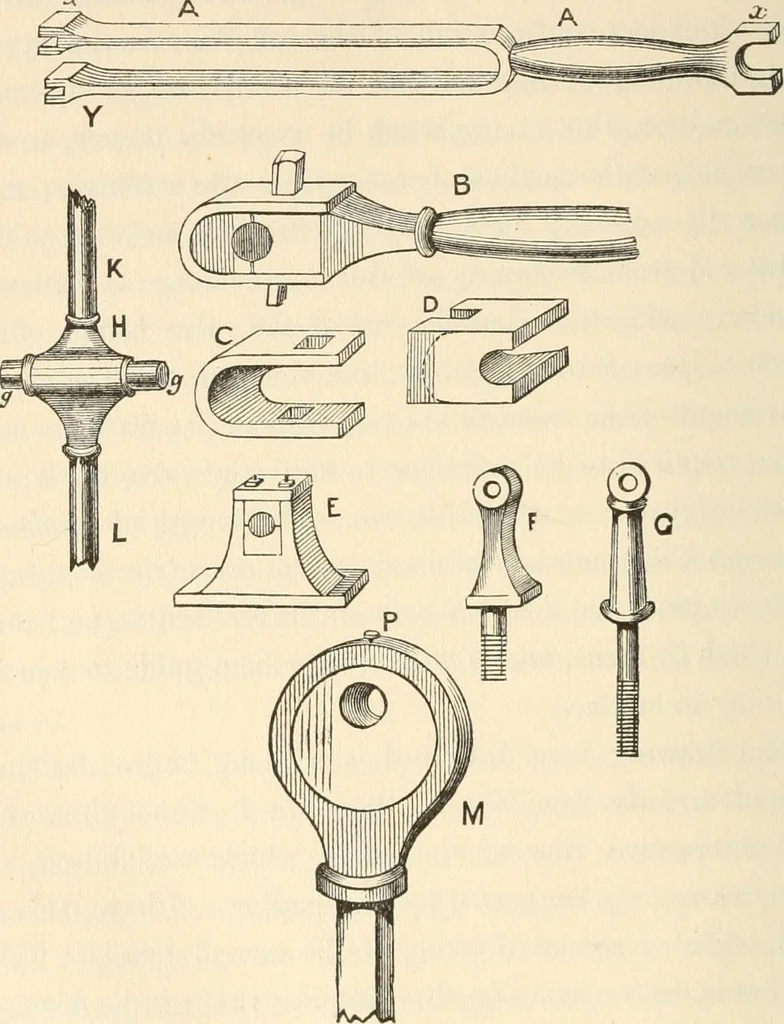

fore I cannot show youthe perspective view of the parts, which are, indeed, inmany cases only suggested by the shading. I have, there-fore, added a second drawing of the several details. Thisengine is, in construction, the simplest that can be devisedwilh a slide-vale, there being no additions… … Fig. 64. previous drawing. This is cast with forked ends, ar, and « DETAILS. *79 Y (the latter being F F of Fig. 63). These ends receivebrasses in the following way, the end x being representedon a larger scale at B, with such brasses in place; of thesethere are two shaped like D. One of these lies…
