The young mechanic; containing directions for the use of all kinds of tools, and for the construction of steam engines and mechanical models, including the art of turning in wood and metal (1902)

[Lukin, James] [from old catalog] · New York, London, G. P. Putnam's sons · leaf 75

An illustration from The young mechanic; containing directions for the use of all kinds of tools, and for the construction of steam engines and mechanical models, including the art of turning in wood and metal, 1902, leaf 75

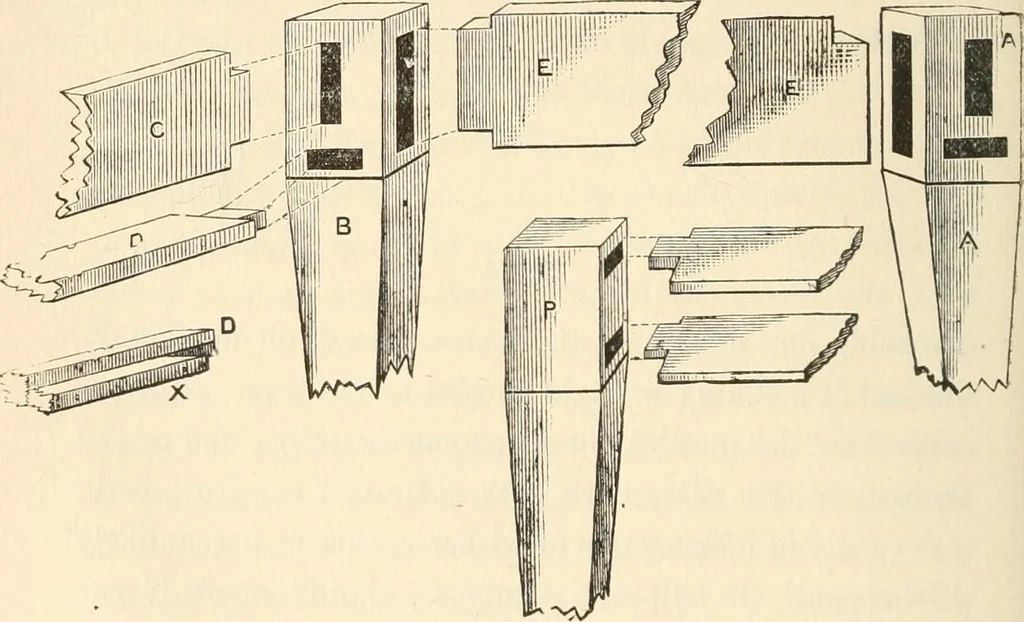

h glued wedges where neces-sary. You cannot, however, do this with the sides of yourmortices, because you require these to fit exactly; youmust therefore use extra care in keeping these as true aspossible. In many cases you can wedge the ends of tenciQsto correct a bad fit, but never the sides.… … Fig. 27 what dilferently constructed, and the corueis of the drawei are united with dovetails. Plane up the legs as before. HOW TO MAKE A TABLE. 6i but cut mortices as at A, Fig. 27, which represents theright-hand hinder leg as you would see it standing in frontof the table, and before the…
