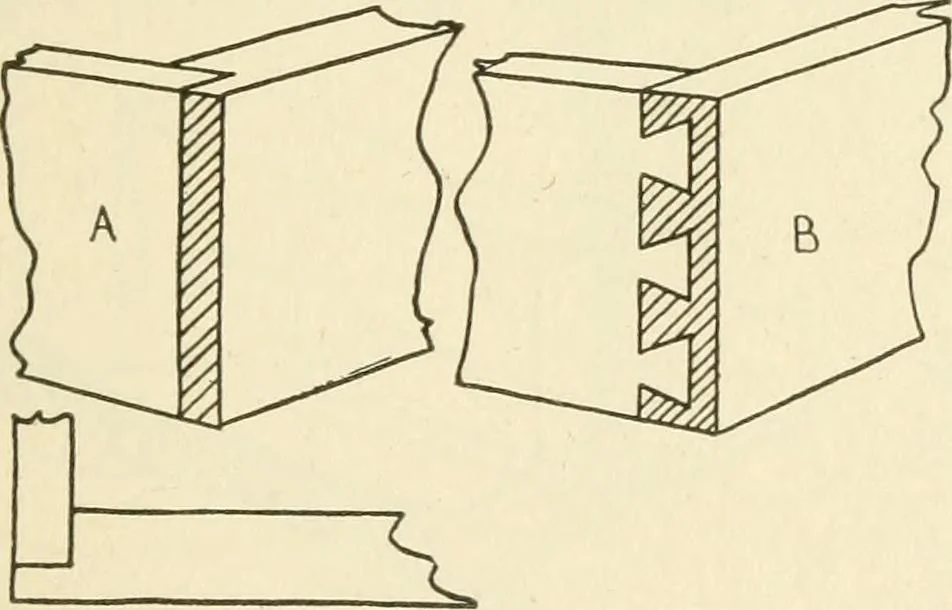

he front ofthe drawer should be laid out and cut first. (1) Gage on the end the distance thedrawer side is to lapover the front. (2)Without changing thesetting of the gage,hold the head of thegage against the end ofthe drawer side andgage on both broad sur-faces. Ordinarily, oneshould not gage… … Fig. 430. A, Common Method.Half-Blind Dovetail. B. 290 WOODWORK FOR SECONDARY SCHOOLS. inside surface—of the drawer front at a distance fromthe end equal to the thickness of the drawer side. Thisline gives the depth of mortise for the tails. (4) Thegroove for the drawer bottom having been cut. or…
