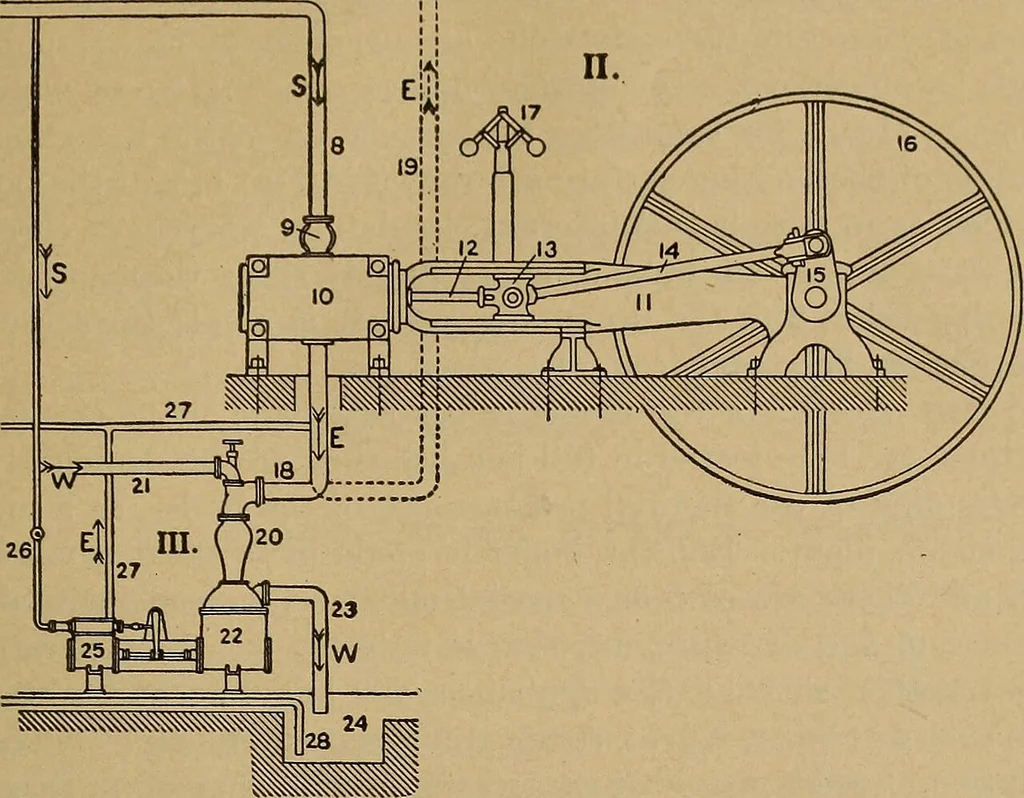

nser 13. Crosshead. 19. Exhaust to open air. 14. Connecting rod. a suitable arrangement for holding the bed of fuel, so formed that aircan pass through it, with provision made for introducing fresh fuel andremoving the solid waste products; second, means for regulating thesupply of air, both below… … Fig. 1. — The Steam Plant. B. Engine and Condenser. Ill Condenser and Pump (Jet or mixing type). 20. Condensing chamber, 21. Cold-water supply. 22. Pump cylinders. 23. Discharge pipe. 24. Hot well. 25. Steam cylinders. 26. Steam pipe to pump. 27. Exhaust pipe. IV The Feed Pump (Separate,…
