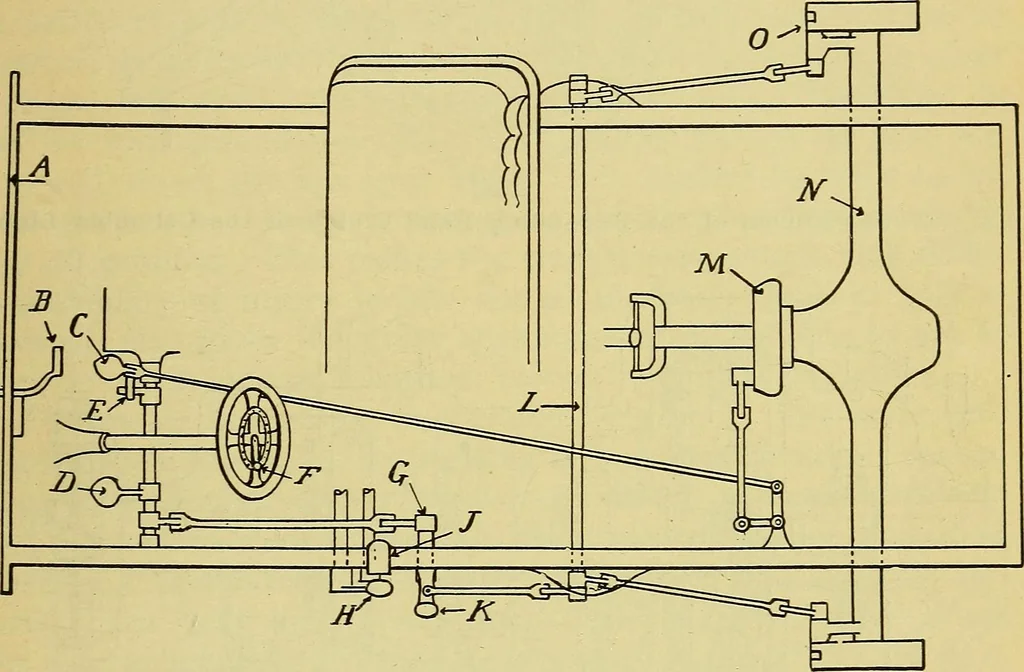

le of this make, driven by a double opposedcylinder engine, 5x4^2, set over the front axle in a conventionalbonnet, and developing between 12 and 14 horse-power, has aninteresting variety of control system, as shown in the accompany-ing diagram. As in several other American carriages, the… … Fig. 308.—Plan Showing- Lever and Control System of the Columbia Two-cylinder Light Carriage. A is the dash; B, foot accelerator lever forcontrolling engine; C, foot brake lever; D, clutch lever; E, clutch in-terlock, requiring that clutch be thrown before brakes are set; F, igni-tion-timing lever…
