Leeds, Charles Carley, 1870- (from old catalog) · New York, D. Van Nostrand company · leaf 106

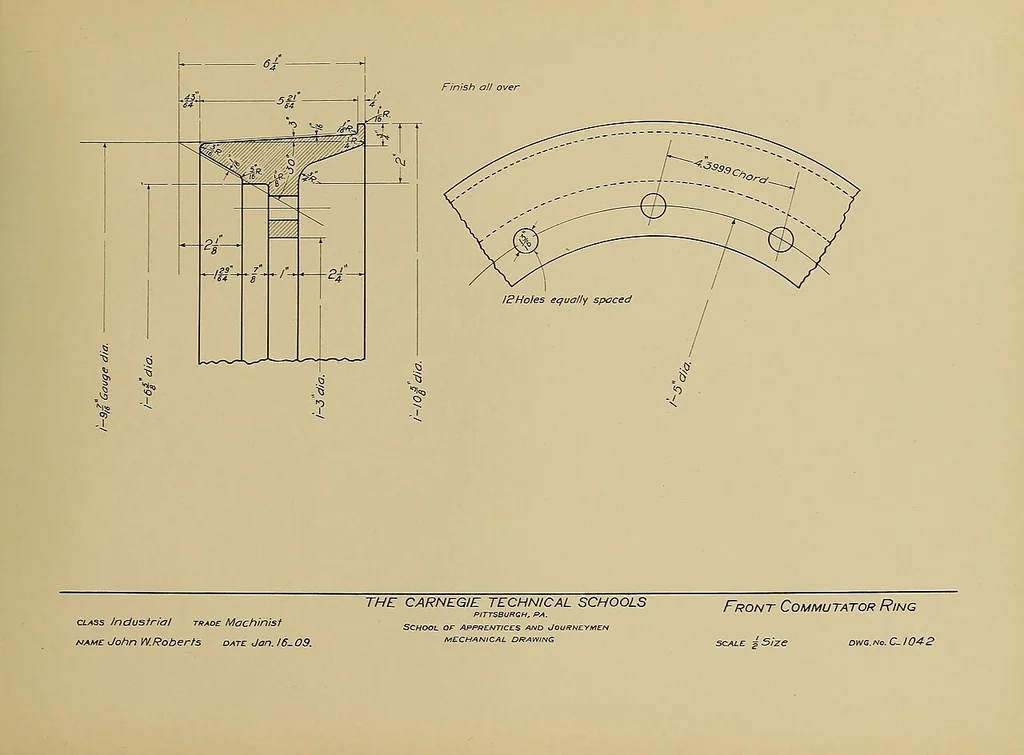

T COMMUTATOR RING.—We mentioned in our lastlesson that the commutator bars were held by circular clamps whilebeinsr bored out. After the boring is finished, the commutator mav beslipped onto the spider, where it is held in place by V-shaped rings. On Drawing C-1042 is shown the front or outside… … CLASS Industrial trade: Machinistname: Jotin W.Roberts date: Jan. 16-09. THE CARNEGIE TECHNICAL SCHOOLS pittsburgh. pa.School of Appf/lmticcs and Journeymen mechanical drawing Front Commutator Ring SCALE 2 Size owg.no. C-104 2 LESSON No. 48. REAR C0:^OIUTAT0R RING. — On Drawing C-1043 isshown a…
Mechanical drawing
