A textbook on mechanical and electrical engineering (1902)

International Correspondence Schools · Scranton : International Textbook Co. · leaf 188

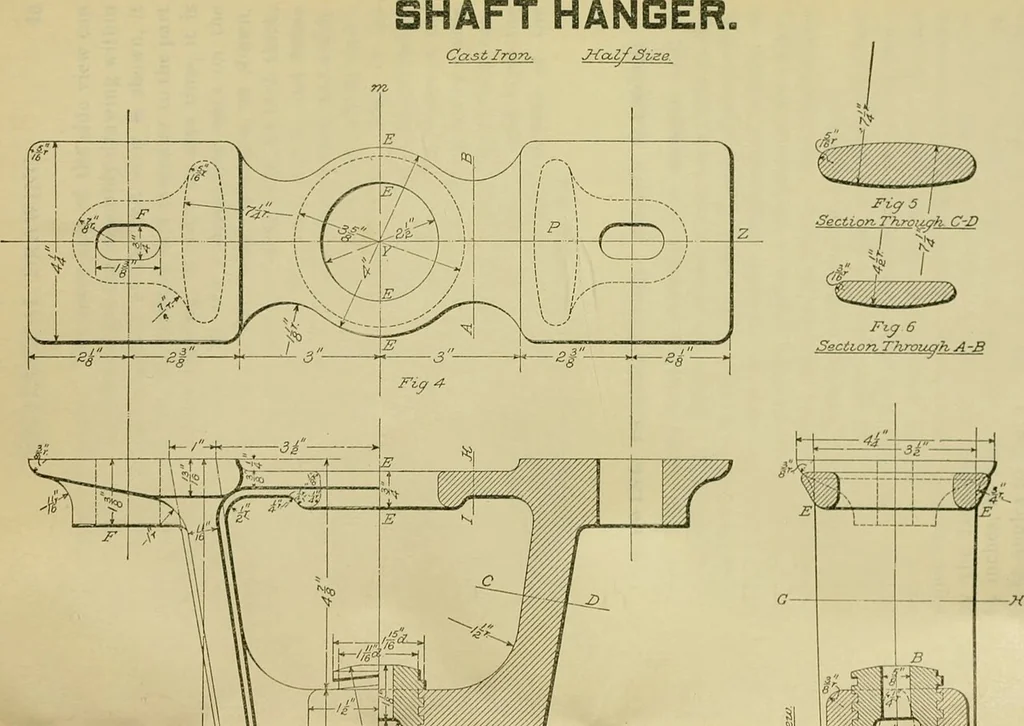

An illustration from A textbook on mechanical and electrical engineering, 1902, leaf 188 — JUNE 25./893. For notice of copyrigist. see paee … nediately following the title paire s/OffN SM/Tff, CLASS JV9 4529. § 14 MECHANICAL DRAWING 45 bolt should be drawn. The lower half of the side view cannow be drawn. In order to get the assembly drawing withinthe space available, only half of the end view is shown, itbeing understood that the…
