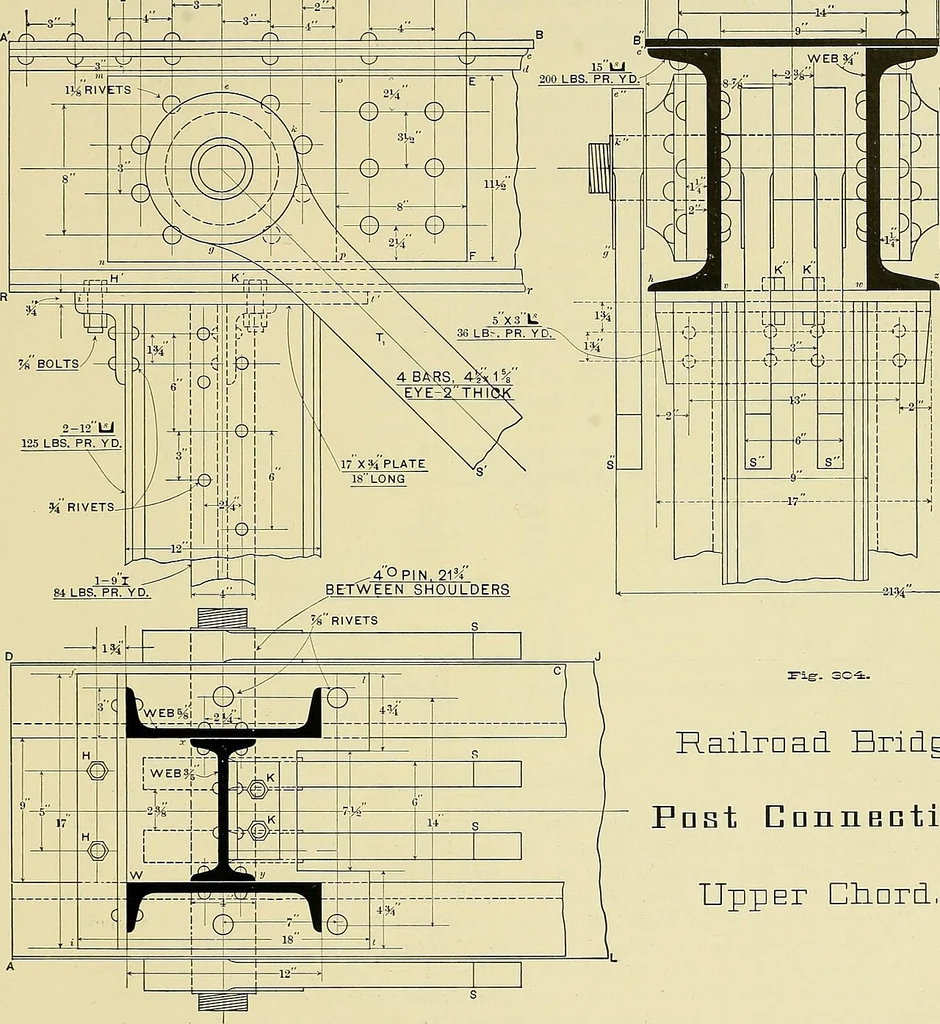

The longer plate mnFE is next the channel. The other, nmop, has a kind of hub cast on it whichrounds up to the bar head, as shown in the side elevation. The vertical post is made up of an I-beam and two channels, as shown by the black sectionson the plan. UPPER-CHORD POST-CONNECTION. 175 -14 isx Vk… … X S Railroad BridgePast CnnnBGtinn Upper Clinrd, When drawing the above the student should make horizontal dividing lines in all fractions. A brush tint of Prussian blue for all the metalparts will enhance the appearance of the di-awing very muteriallj-, but the previous lining should be,…
