Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 92

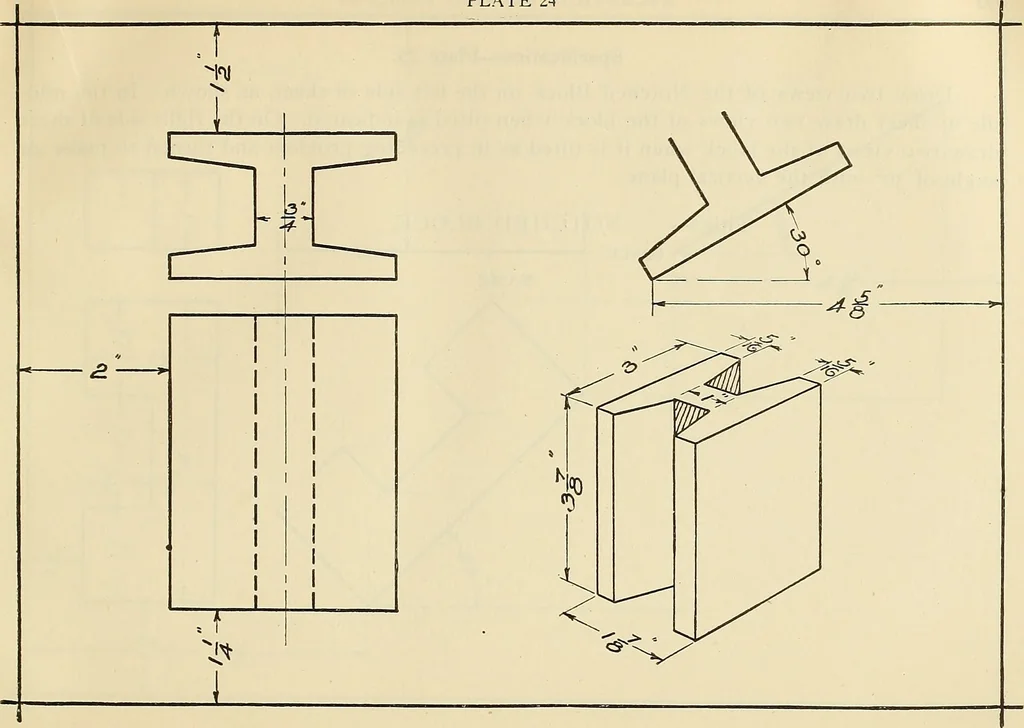

88 MECHANICAL DRAWING PROBLEMS Specification—Plate 24. Draw two views of the H-block on the left side of the sheet, as shown. On the right sideof the sheet draw two views of the block as it would appear when turned as indicated. Theview on the horizontal plane is partially drawn and makes an angle… … 90 MECHANICAL DRAWING PROBLEMS Specification—Plate 25. Draw two views of the Notched Block on the left side of sheet, as shown. In the mid-dle of sheet draw two views of the block when tilted as indicated. On the right side of sheetdraw two views of the block when it is tilted as in preceding…
Mechanical drawing
