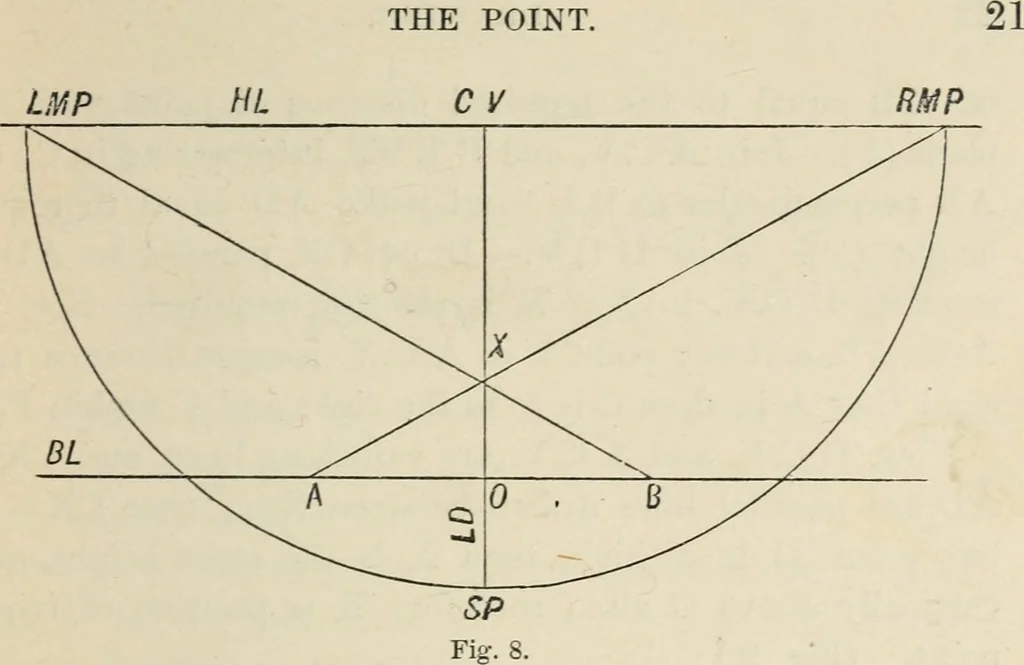

n the ground 6 feetdirectly in front, as seen by a spectator 6 feet in height, and4 feet from picture plane. In fig. 8, we draw H.L. and B.L. 6 feet apart, and C.V.S.P. perpendicular to B.L. from C.V., and make O S.P.the spectators distance from base line. Draw a semicircleto cut H.L. in L^NIP and… … Example 2.—Find a point 3 feet (3) to right, 4 feet (4)within the P.P., and 5 feet (5) above it. Height of spectator5 feet 6 inches (5 6), and his distance from P.P. 4 feet (4), /?/WP
