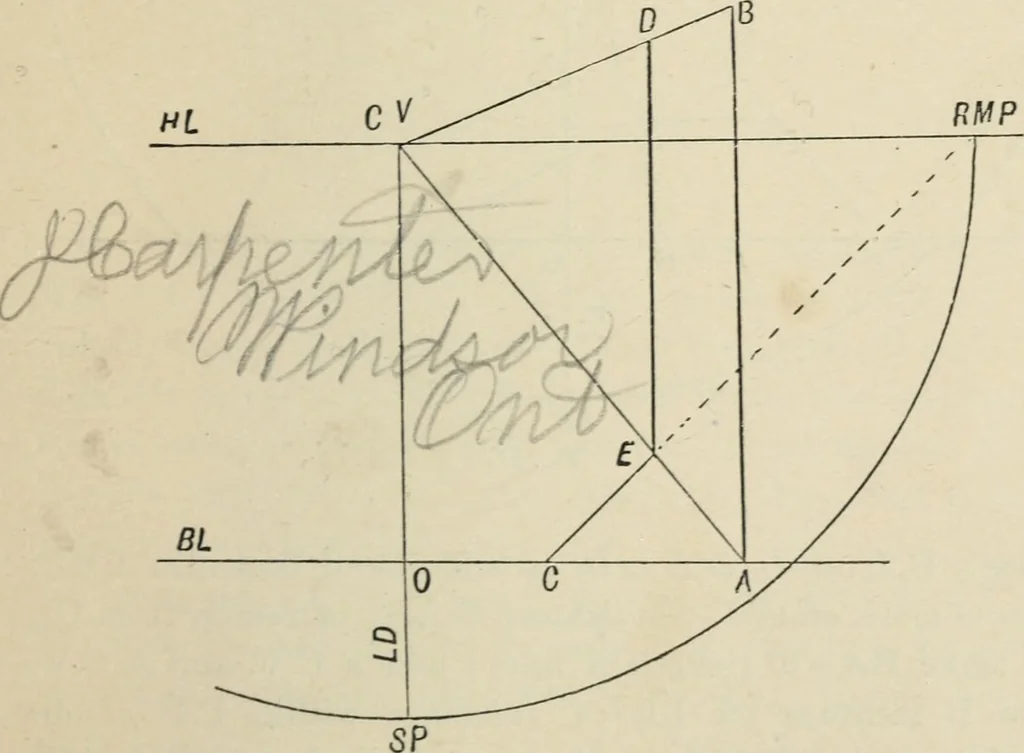

5. Find potion of a fish resting in water 4 beneath G.P.,^ to R., and f within P.P. 6. In Ex. 1, show that however far the point be away, itmust always be nearer than the point C.V. THE LINE. 23 THE PERSPECTIVE L: A straight line is the shortest distance between any twopoints. If we know the… … Fi^. 10. Draw H.L. and B.L. 6 apart; draw C.Y. S.P., makingO S.P. (LD) 4, and find RMP as before. Take A, 6 to rightof 0, a»d erect perpendicular AB 8 in height; join B C,Y, J 24 DRAWING. and A C.V.; take C 4 to left of A, and join C RMP, cuttingA C.V. in E. Through E draw ED parallel to AB ; ED…
