Perspective and geometrical drawing adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thomas H. [from old catalog] · Toronto, W. Briggs; · leaf 28

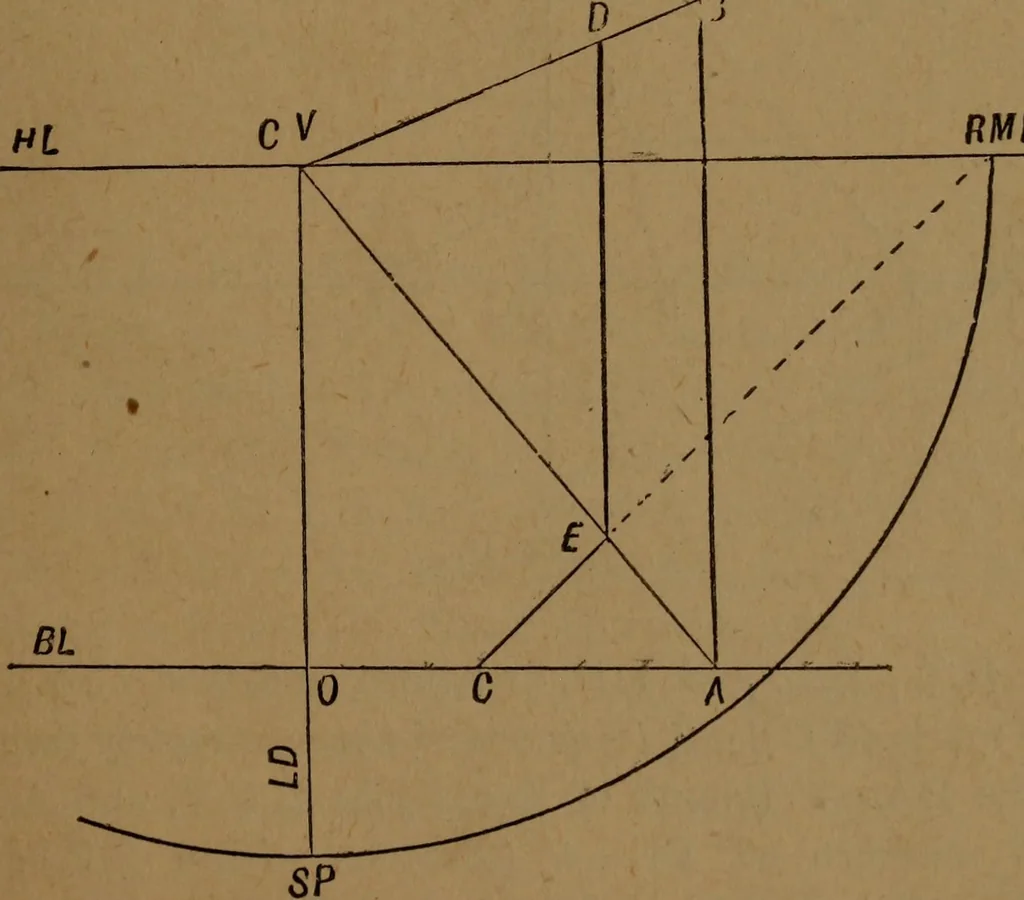

d position of a fish resting in water 4 beneath G.P.,6 to B., and 8 within P.P. 6. In Ex. 1, show that however far the point be away, itmust always be nearer than the point C.Y. THE LINE. 23 THE PEESPECTIVE LINE. A straight line is the shortest distance between any twopoints. If we know the… … Jig. 10. Draw H.L. and B.L. 6 apart; draw C. Y. S.P., makingO S.P. (LD) 4, and find PMP as before. Take A, 6 to riglitof O, and erect perpendicular AB 8 in height; join B C.Y. 24> DRAWING. and A C.Y.; take C 4 to left of A, and join 0 EMP, cuttingA C. Y. in E. Through E draw ED paraUel to AB; ED…
