Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 29

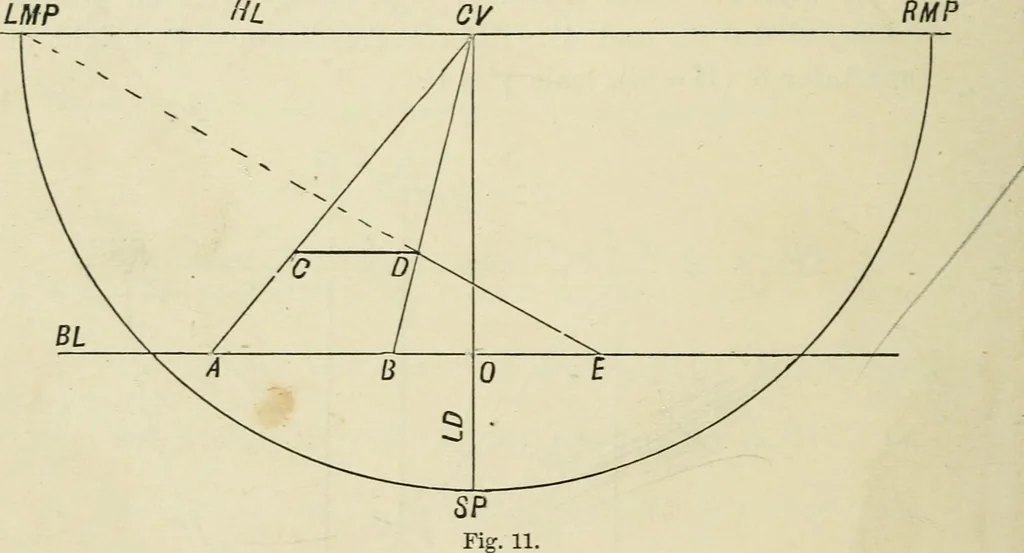

e A, 6 to rightof 0, a»d erect perpendicular AB 8 in height; join B C,Y, J 24 DRAWING. and A C.V.; take C 4 to left of A, and join C RMP, cuttingA C.V. in E. Through E draw ED parallel to AB ; ED isline required. Xow, since AE = AC, E is 6 to right and 4within P.P.; but ED = AB, then ED is 4 within… … Draw H.L., B.L. and L.D. as before, and findi also LMP.From O mark off OB ^ 2 (distance of near extrenmy from O),and make BA = 3 (length of line); join B C.Y. and A C.V.From B measure off BE = 4 (distance within P.P.); joinE LMP, cutting B C.V. in D ; through D draw DC to lineA C.V. and parallel to…
Geometrical drawing · Perspective
