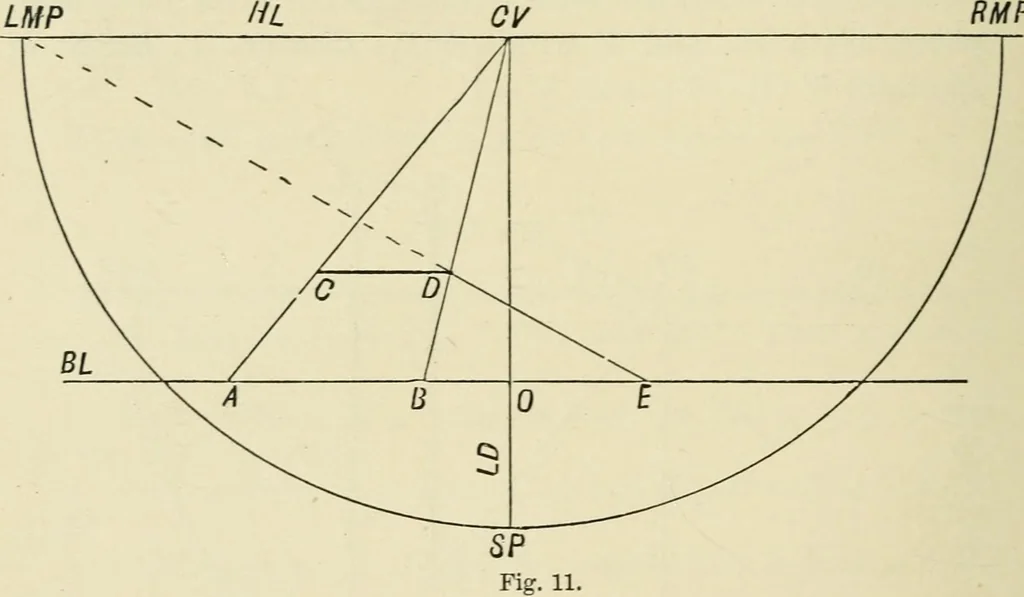

6 to rightof 0, and erect perpendicular AB 8 in height; join B C.V, 24 DRAWING. and A C.V.; take C 4 to left of A, and join C RMP, cuttingA C.V. in E. Through E draw ED parallel to AB ; ED isline required. Now, since AE = AC, E is 6 to right and 4within P.P.; but ED = AB, then ED is 4 within P.P.,… … Draw H.L., B.L. and L.D. as before, andjind also LMP.From O mark off OB = 2 (distance of near extremity from O),and make BA = 3 (length of line) ; join B C.V. and A C.Y.From B measure off BE = 4 (distance within P.P.); joinE LMP, cutting B C.Y. in D ; through D draw DC to lineA C.Y. and parallel to…
