Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 37

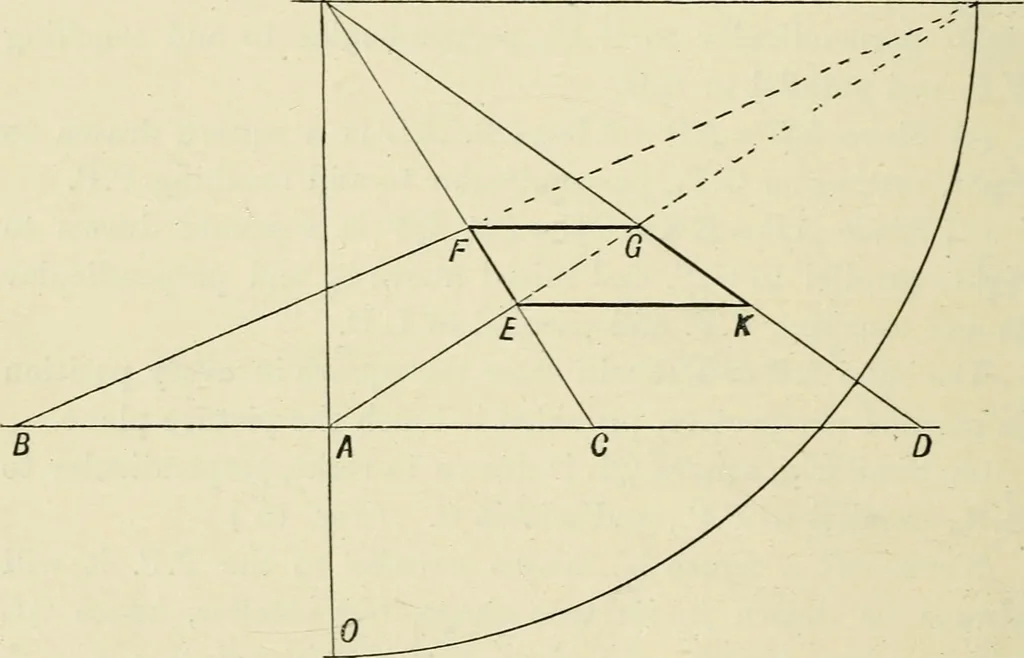

the others are within it.It will be seen that as the squares recede they appear smaller. s^ DRAWING. Rrample 1.—Draw a square, side 4, 4 to R., 4 within,lying on G.P., _L to P.P. H - 6, L.D. = 4, scale \ = V. Construct figure as before. Take AC one inch (4) and CDone inch, take AB to left one inch,… … Fig. 16. Example 2.—Draw a square, side 4 and 6 to left, J_ toP.P. and 3 within it, and J_ to G.P. and 1 abov5 it.Other specifications as in last example. Construct figure as before. Take C U (6) to left of A,take B 1 (4) to right of A, erect CE _\_ to AC at C and IJ(5) in height, and mark ofi D J…
Geometrical drawing · Perspective
Internet Archive · Western University Libraries · Public Domain Mark 1.0. Free to use for anything.
