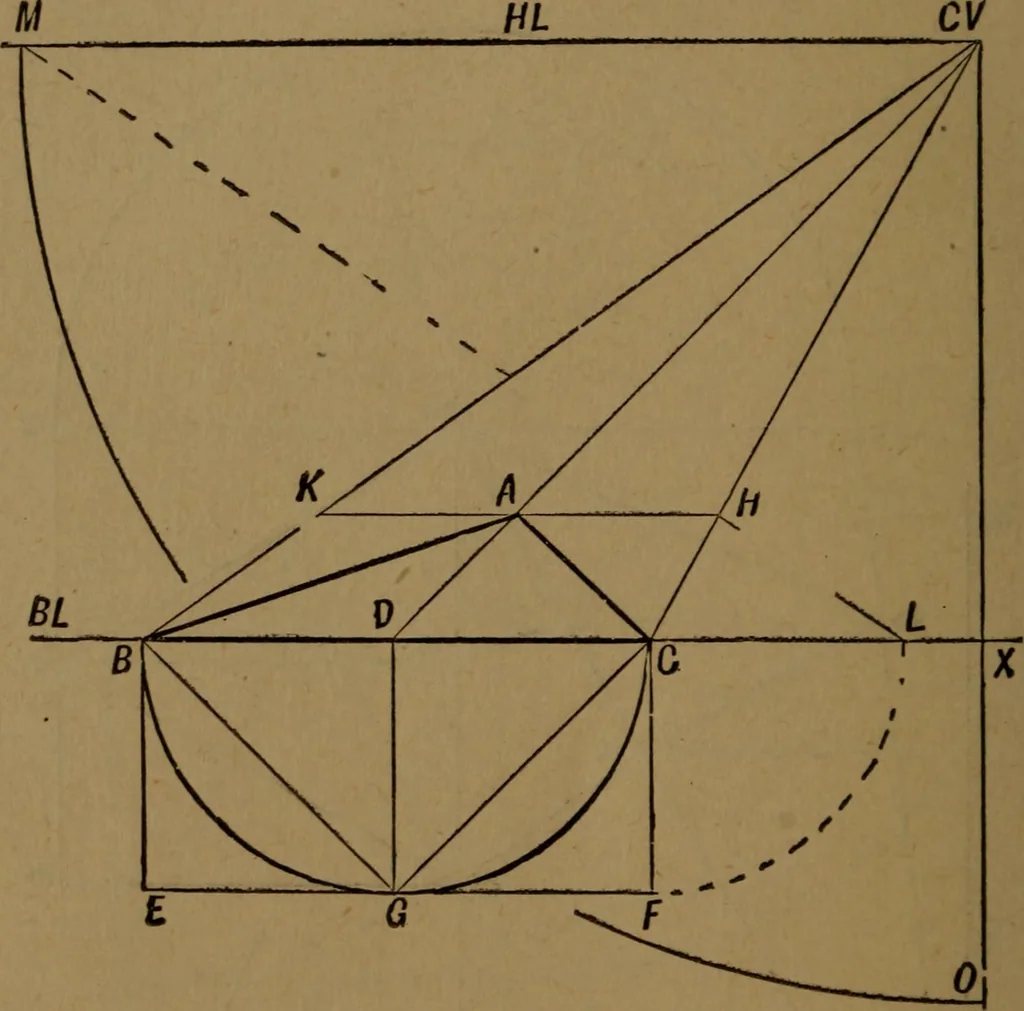

length of side; then C corresponds to G, and AC, CB to DGand GB respectively. (Fig. 24.) Example 4-—Draw a right angled-triangle whose hypothenuse is 4 and one of the other sides 3; the right angle is 44 BRAWINa directed away from the observer, and is 5^ to the left, andthe hypothenuse is 3 to the… … Fig. 26. Draw H.L., B.L. and L.D. as before. Find M, and take apoint D, 5 to left, 0, 3 to left, and B, 4 to left of C. OnBC describe the semicircle BGC. (The angle BGC in a semi-circle is always a right angle.) Join DG, B C.V., T> C.V. andC C.V.] through G draw EF parallel to BC, and through B,…
