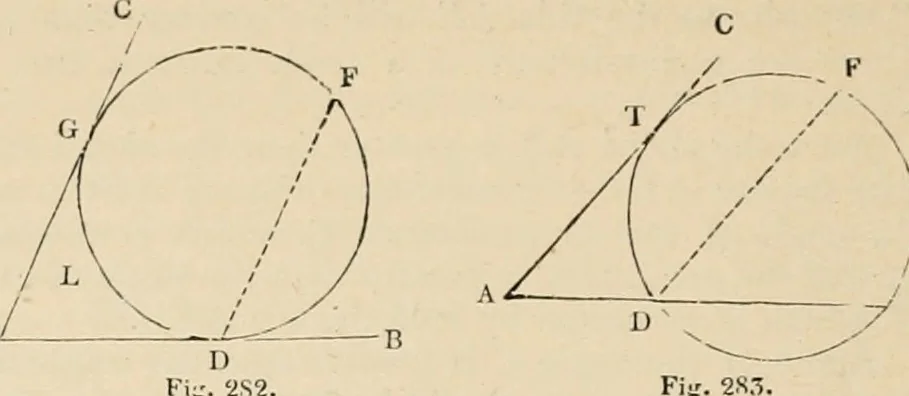

276 THEORY OF A RCUlTECTUltE- … Becruse tlie tangent AC and theclioril DF are paiallel, the intor-ceptefl ares (»F Gl) are (Prop.47.) c(iiial. The arc FD is there-fore the ditfcrenee between the arcGLD and the arc GFD. There-fore the angle CAB, which is mea-sured by half the arc FD, is alsomeasured by half the difference…
