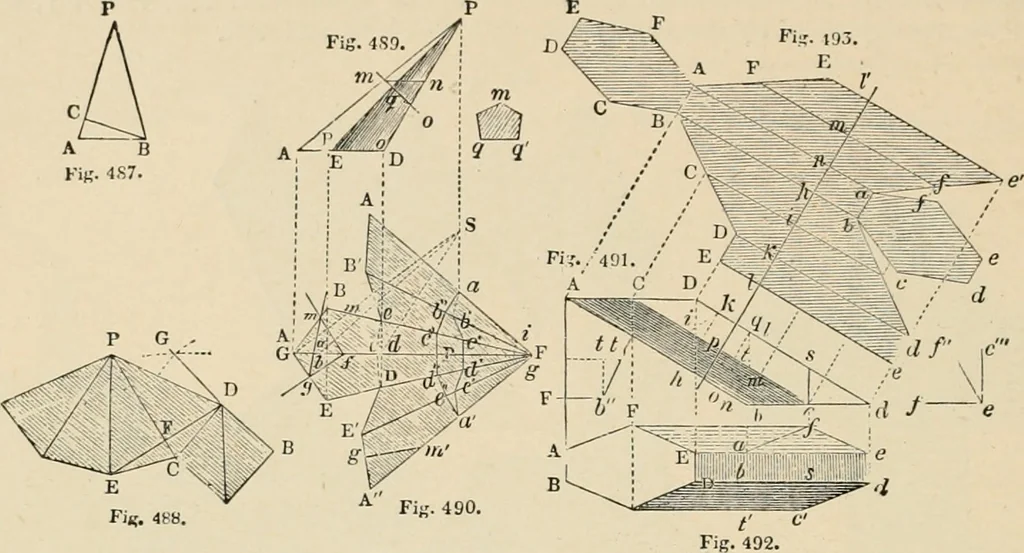

is necessary, and that is founded on a principle common to alll»rojections ; viz. that the length of an inclined line -projected or foreahortened on a plane,depends upon the differeucf of the jjerpvndiiiilar eUnigaiion of its extremities from the plane. 324 THEORY OF ARCHITECTURE. Book II. whence… … FK. im 1160. In the application of this rule to the oblique pyramid oi fig. 489., the position ofthe ])oint P {fig- 490.) must be shown on the plan or horizontal projection answering to theapex of the pyramid, and from this point perpendicular to the face CD on the same sidethe perpendicular PG…
