Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 480

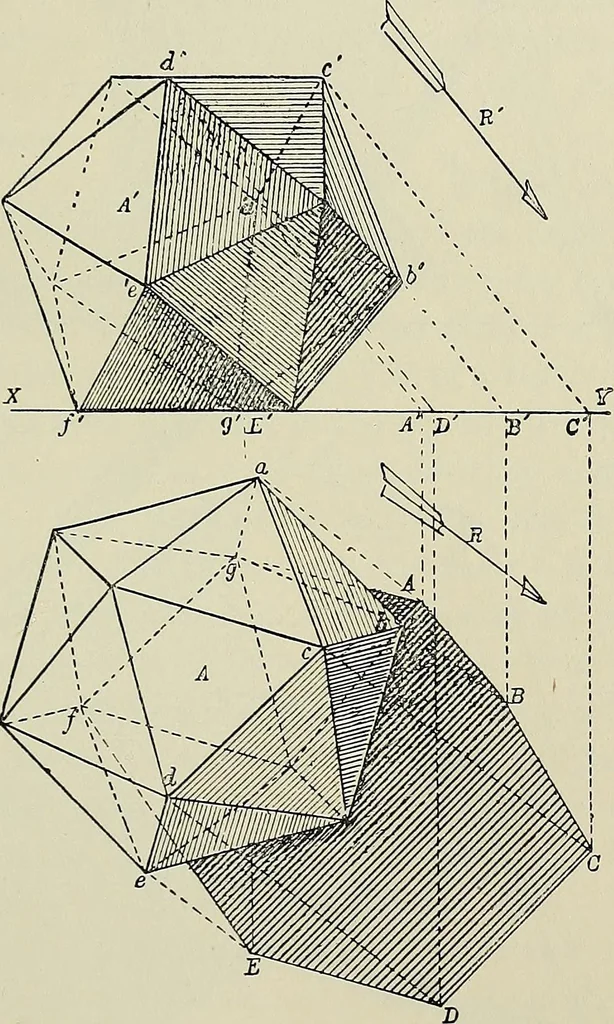

ines from the corresponding points in the plan, parallelto the arrow E, till they meet perpendiculars drawn from thecorresponding letters on XY. These give the points A, B, C, D,and E. Join them as shown. Also join A to g, and E to /, tocomplete the shadow. PROJECTION OF SHADOWS 459 Pkoblem 211.… … Fig. 260. rectangular prism on the H.P., are determined as described inthe preceding problem. Some of the points of the shadow of the dodecahedron are 46o SOLID GEOMETRY chap. intercepted by the rectangular prism, e.g. a line drawn from V
Geometrical drawing
