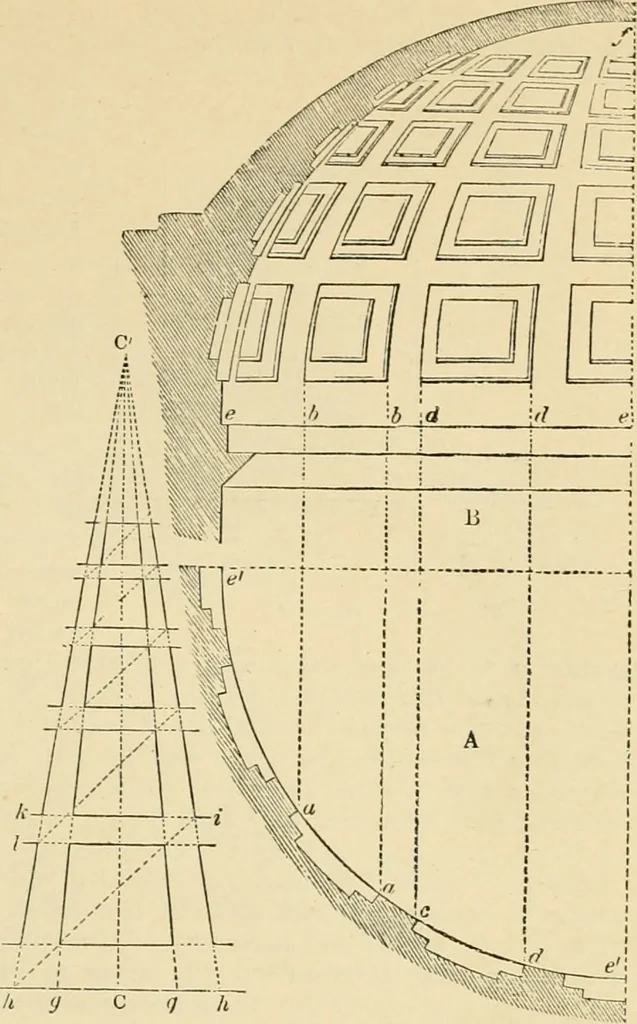

nnlhi being then drawn, the horizontal lineik will determine the lower edge of fenext caisson upwards. Proceed in thisway for tlie next from I and so on.The heights of the caissons thus ob-tained, being transferred to the sectionon I he quadrant ef, will give the ])ro-portionate diminution thereon… … It <J C (] li 20C)2d. V. Of Gothic Vaulting. — Professor Willis, in his valuable essay On theFaults of the Middle Aues, printed in the Transactions of the Institute of BritishArchitects, 1842, states that every rib should spring as a separate and independent arch,and that the elliptic curves…
