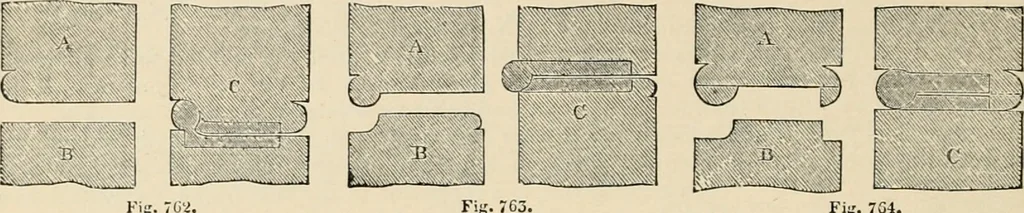

purposes audmay be made with common hinges. If crooked, it will assist in excluding the ciirreai ofair, a point of no mean importance. 2151. In/iff. IG-J. A and 13 exhibit a plane joint, beaded similarly on both sides. Inthis case, the plane of the joint is a tangent to the cylindrical surfaces of… … 21/;2. Fiff. 763. A and B represent a hinging wherein the plane of the joint from oneside is directed to the axis of the bead on the other. The principle in it is the same asthat in Jiff. 76!., and it may therefore be hinged witli common hinges, as shown in C, inwhich the two parts are conjoined.…
