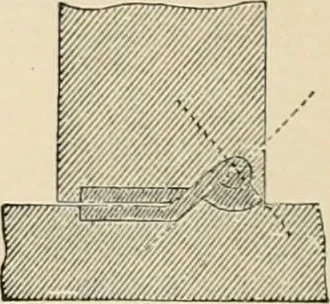

FiK. 705. Fig. 76G. Fig. ;ii7. 2155. Fiff. 766. is a method that has been adopted for concealing the hinges of shutters.A is the inner bead of the sash-frame, B tlie inside lining, C the style of the shutter. Forthe form of the joint, let af be the face of the shutter, perpendicular to ar the face…
