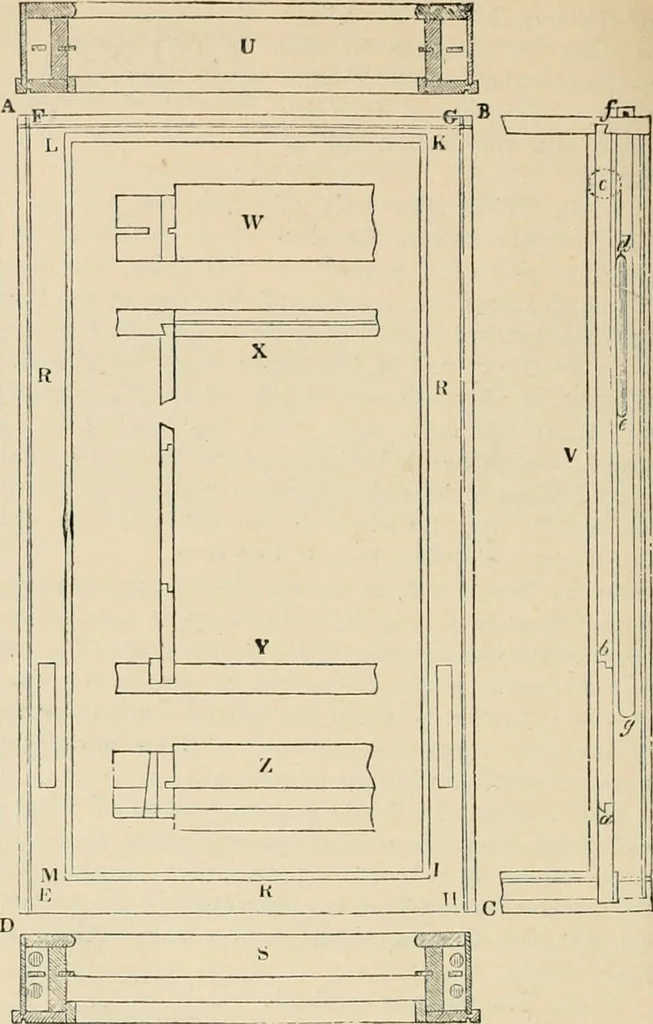

he sill. Fie/. 778. exhibits sec-tions of the meeting rails of theupper and lower sashes, with sideelevations of the upright bars ;C is the rebate for the glass, Da square, E and F an astragaland hollow moulding, G a fillet.The smaller letters mark thegame parts of the under sash.Fif/. 779. is the…
