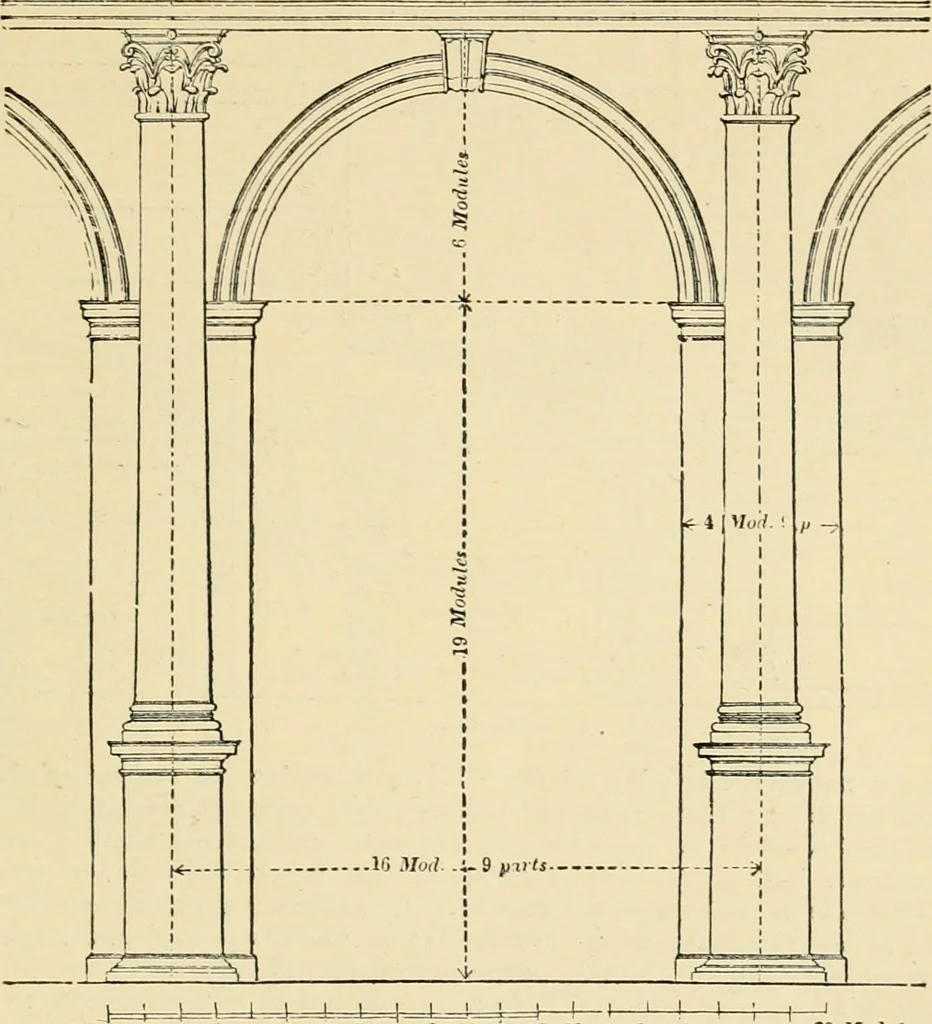

I 10 n 1-2 13 U 15 It) 17 1» i; 20 MiMlulnFig. 906. 2631. Fiff. 906. is an arcade with pedestals of the Corinthian order. Its total area is5-8, that of the void 284, the area of the entablature 84, and that of the suj)portingparts 159. Hence, the ratio of the load to the support is ^*(,= -52, and…
