An encyclopaedia of architecture, historical, theoretical, & practical. New ed., rev., portions rewritten, and with additions by Wyatt Papworth (1888)

Gwilt, Joseph, 1784-1863, Papworth, Wyatt Angelicus Van Sandau, 1822-1894 · London Longmans, Green · leaf 989

An illustration from An encyclopaedia of architecture, historical, theoretical, & practical. New ed., rev., portions rewritten, and with additions by Wyatt Papworth, 1888, leaf 989

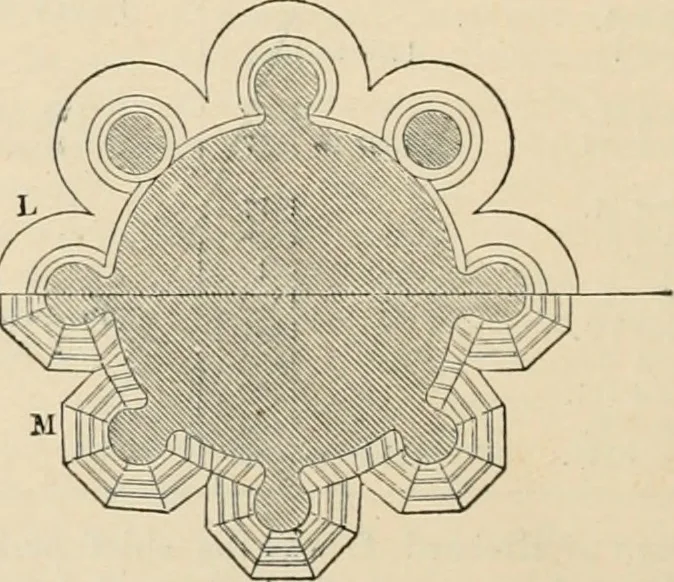

Fig. 1059. VVESTJnNSTER ABBEY ; IlLLAIiS OF NAVE (T„ EASTEKBBAVS, DECOUATED—M, WESTEItN BAYS, PElil-ENDICULAK.) In the earlier plans of the nave piers four shafts stand clearly detached from the mainbody of the pier, Ji(/. 1058. ; but subsequently the pier was worked with eight shafts,J^^. 1059.…
