Architectural details for every type of building : a practical drafting room guide for contractors, builders, lumber dealers, millmen, draftsmen and architects. (1921)
William A. Radford · William A. Radford · leaf 141

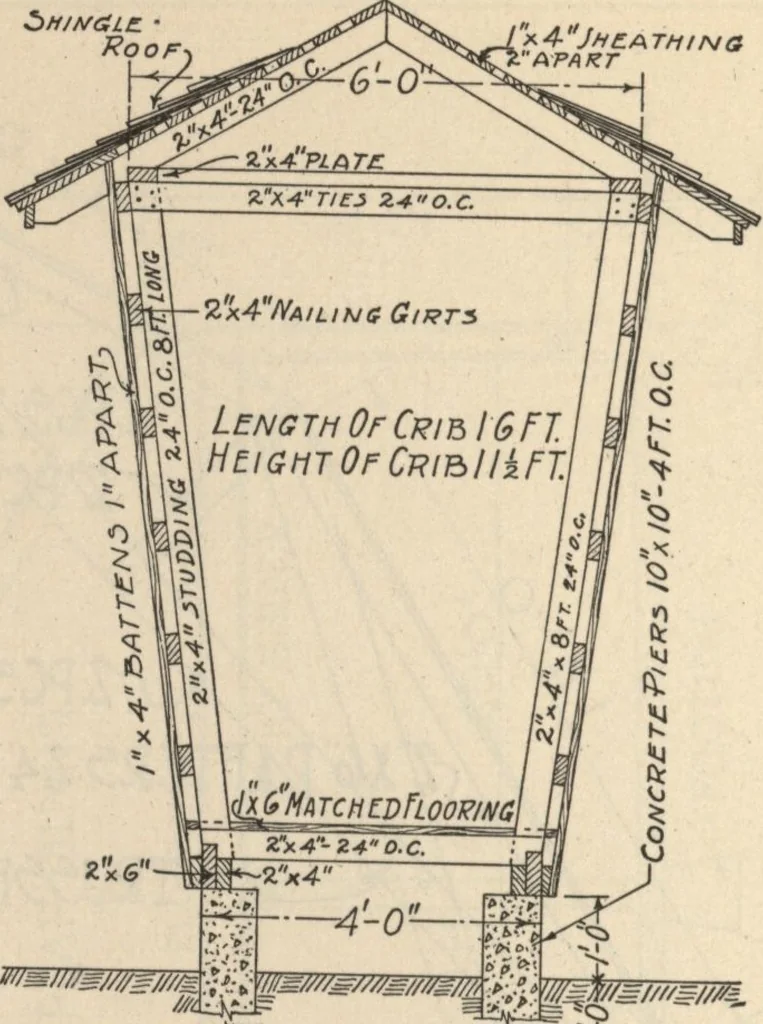

Roof f\Pf\KT Cross Section Dimensioned Construction View ofScale House. … Section Thru Corn Crib Small Single Corn Crib of the Good Old-Fashioned Type Restingon Concrete Posts 12 Inches Above Ground to Keen Out the Bateand Mice. The Building Is 4 Feet Wide at the Base, Sloping Oat-ward to a 6-Foot Width at the Plates. The Height Is ll^i Feet andthe Length 16 Feet; 1 by…
