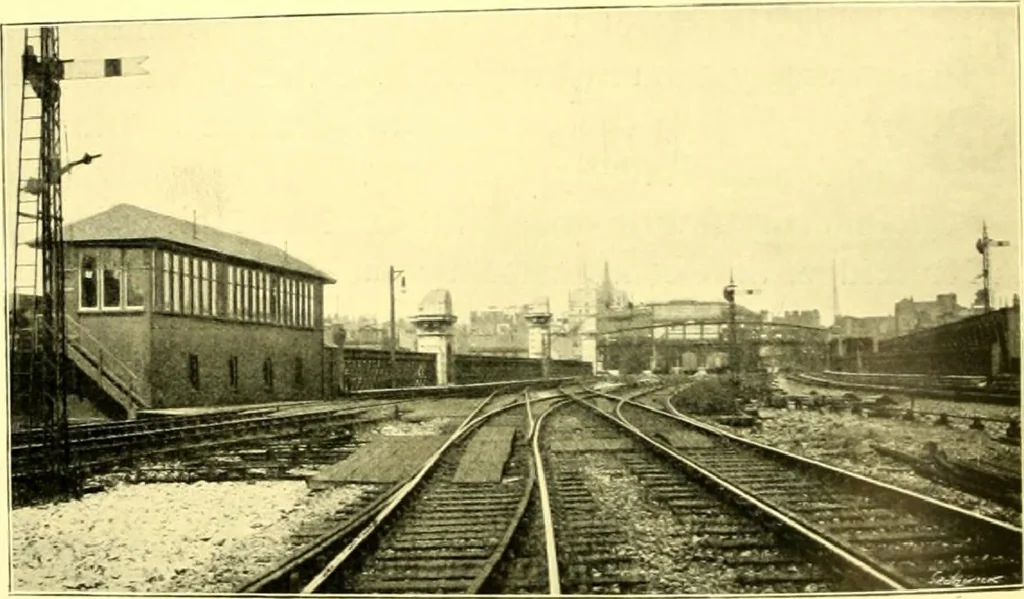

L16 A BR GE vvcnv.iiv.i 120 IT. IN WIDTH are of red brickwork, Paced with blue brick up to near thelow-water level, and with light granite thence to the cope.The superstructure of the river spans is of steel lattice-airders; there are ten girders in the width of the bridge,and the spacing between… … View along the Bridge. on the river spans and of buckle plates on the street spans,is on the top of the main girders: tins permitted pointsand crossings to be introduced wherever desirable. An ornamental lattice parapet, with cast-iron cornice,cope, and rosettes, is carried out from the outer…
