Catalogue of Structural Steel & Iron for Architects, Engineers & Contractors (1910)
Manitoba Bridge & Iron Works · Manitoba Bridge & Iron Works · leaf 17

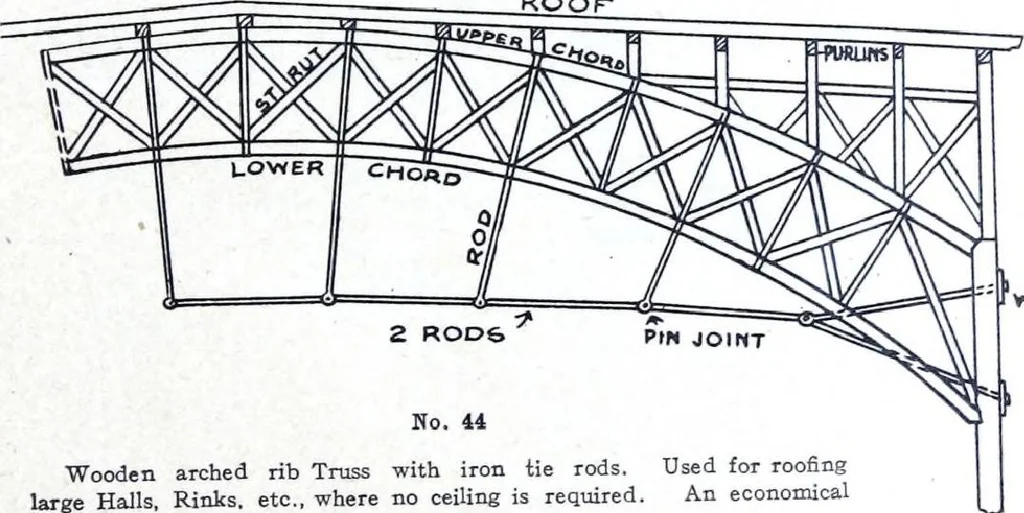

No. 43 WALLWALL Combination timber and iron Truss for pitch roof used where no ceiling is constructed.Spans up to 40 feet. Timbers in compression, rods in tension. F^OOF- … No. 44 WA^iHCB. Wooden arched rib Tniss with iron tie rods. Used for rooenglarge Halls, Rinks, etc., where no ceiling is required. An economicaltype of long span Truss. When ordering or asking for prices, read carefully Instructions to Buyers on page 216 ) 16 THE MANITOBA BRIDGE AND IRON WORKS,…
