Catalogue of Structural Steel & Iron for Architects, Engineers & Contractors (1910)
Manitoba Bridge & Iron Works · Manitoba Bridge & Iron Works · leaf 171

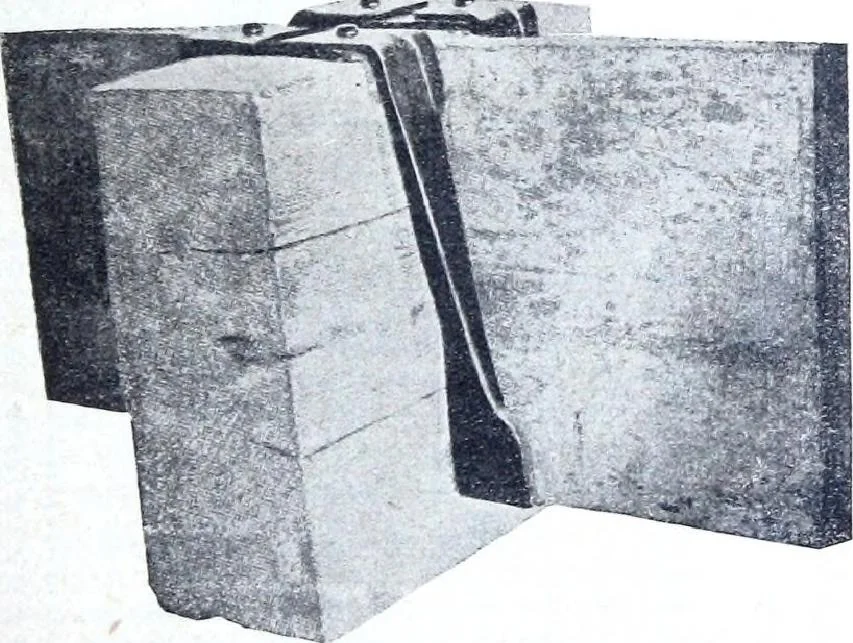

Ho. 314—Ideal Hanger. Style A. … No. 315—Ideal Hanger, Style B. It is a well knuwn and often demonstrated fact that all the stirrupstyles of ioist hangers are weak at the point where they are bent to fit overthe header. In the Ideal type, here illustrated, this weak place is rein-forced and stiffened bv a deep corrugation as shown…
