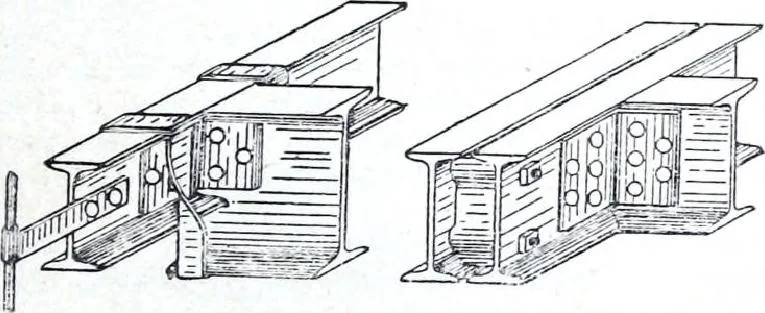

Ifo. 8—I-Beams framed with connectionangles, tops flush. No. 9^ I-Beams framed with connectionangles, bottoms flush. … No 10—Large I-Beam framed to lighter No. 11 — I - Beam framed to compound one with connection angles and strengthen- I-beam Girder, tops flush.ed with stirrup; wall-anchor also shown. Cast Iron separators are made up to fit any section of I-beam, and arefitted with one or two bolts depending on the…
