Detrick arches showing their adaptability to all types of boilers and stokers, special furnaces and oil stills (1921)

M.H. Detrick Company. · M.H. Detrick Co. · leaf 12

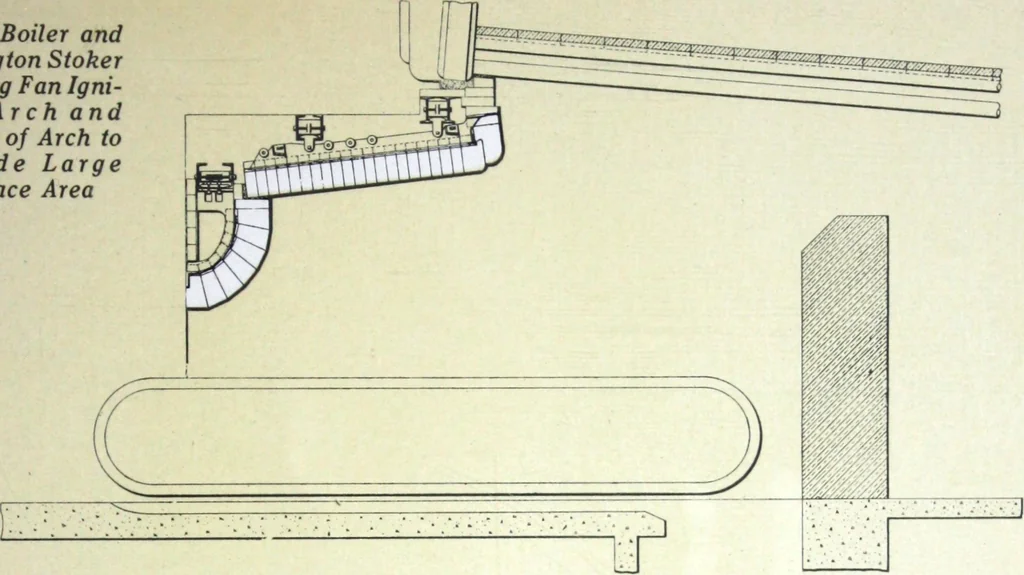

An illustration from Detrick arches showing their adaptability to all types of boilers and stokers, special furnaces and oil stills, 1921, leaf 12 — ARCHES Heine Boiler andHarrington StokerShowing Fan Igni-tion Arch andSetting of Arch toProvide LargeFurnace Area … Badenhausen Boiler and Coxe Stokershowing reversed setting with doublefan ignition arch and combustion arch atrear of stoker.
