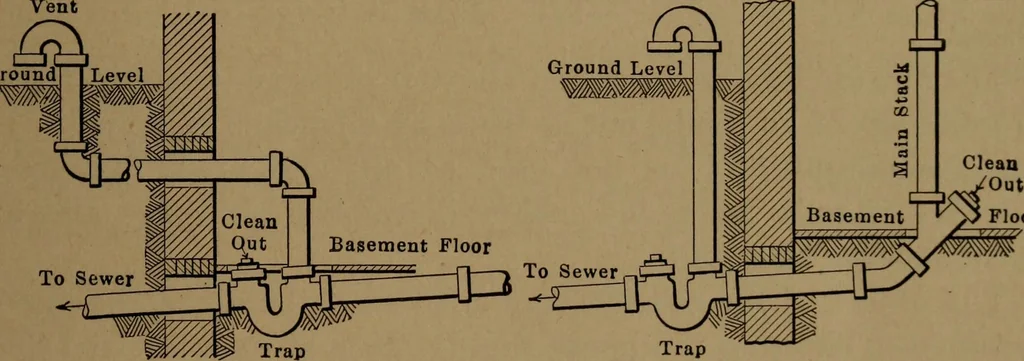

pipes with thestack is shown in Fig. 99 and will be described later. All of thesewage of the house is emptied into the stack by the most directroute, and from the stack it is conducted as directly as possibleinto the sewer. From the drawing it will be seen that all open-ings to the sewer are sealed… … Floor Trap Fig. 61. Fig. 62. Fig. 61.—House drain with outside vent, and running trap placed inside thebasement wall. Fig. 62.—House drain with outside vent, and running trap placed outsidethe basement wall. The openings at E and A at each end of the stack permit aconstant circulation of air for…
