Common-sense stair building and handrailing (1903)

Fred T Hodgson · Frederick J. Drake and Co. · leaf 23

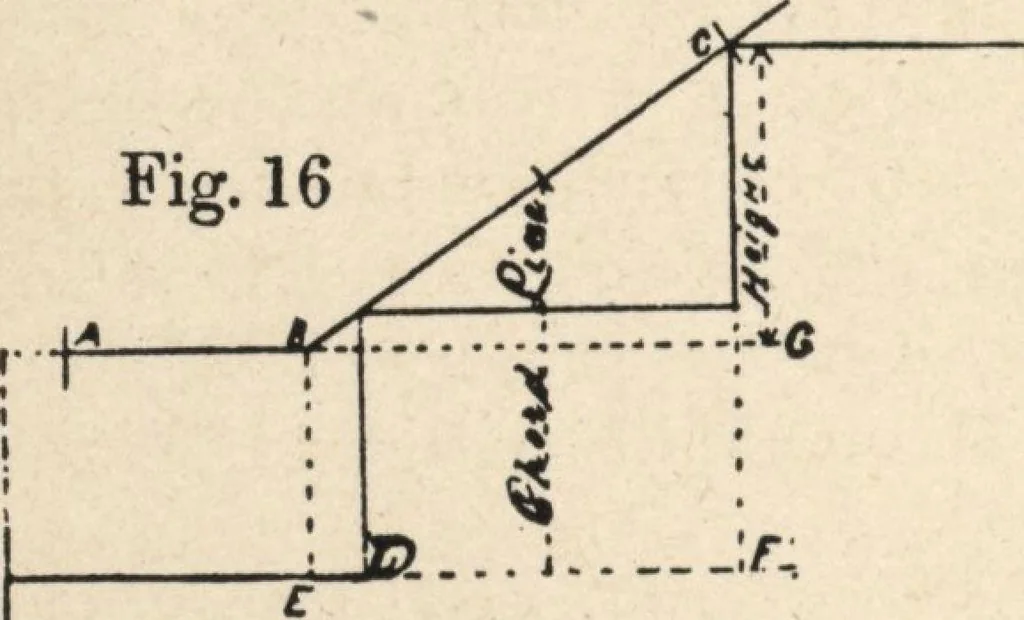

An illustration from Common-sense stair building and handrailing, 1903, leaf 23 — radius. Fig. 16 shows thetangents in position onthe pitch. To constructFig. 16, take the pitch-board and mark out thesteps as shown. Be-ginning at third riserand coming down,drawpitch-line CB from second riser D; mark distance DE,which gives angle B; draw level tangent BA, agree-ing with BA, Fig.… … FIRST METHOD 21 To construct Fig. 17,draw tangents ABC, andcurve line exactly likeFig. 15. In practicethis figure can be drawnon Fig. 15, and to avoidconfusion of lines it istransferred. ContinueAB to D; draw DC atright angles to DB; setup the height, GC, Fig.16. Connect ED at rightangles to ED,…
