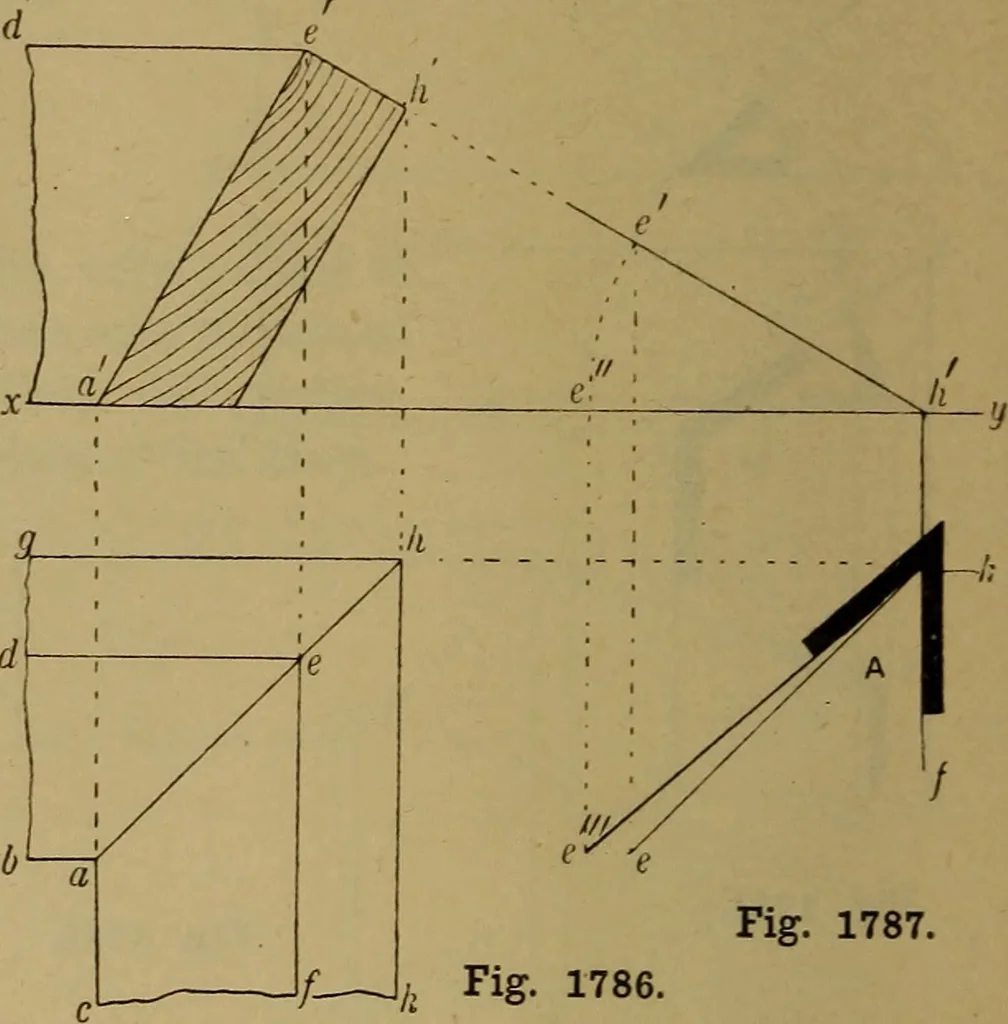

scribed, obtainthe bevel h. If the sides are equally in-clined as shown, the bevel at k will be thesame as that at H. The bevel for the edgeof the stuff is indicated by G. If the edgesof the stuff are bevelled so as to be in parallelplanes, the bevel to be applied to the edgeof the stuff for… … Fig. 1787.k Fig. 1786. Fig. 1786.—Mitered Angles, and Top Edges Square. Fig. 1787.—Obtaining Bevel for Square Edge of Fig. 1786. mitre, which has to be applied to an edgethat is at right angles to the surface, theproceedings will be as explained below.Figs. 1786 and 1787 show the part planand…
