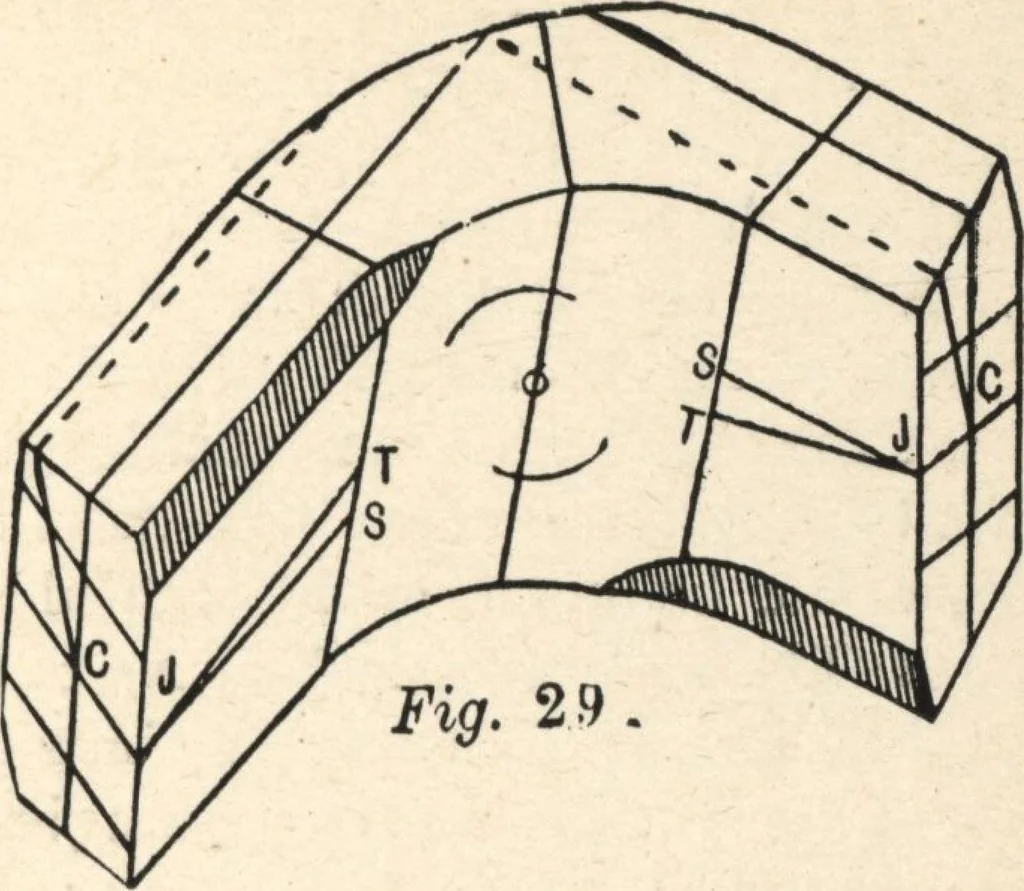

the wreath from thespringing and minor axis lines as shown. Draw the linethrough C square with the line drawn with the bevelFrom this line draw square from the end the center lineJS on the side of the wreath. Referring again to Fig.27 it will be seen the center line of the straight railmeets the… … 88 COMMON-SENSE HANDRAILING the line JT, which is the new center line. The joint isthen made square to this line and the side of thewreath. This will be repeated at the other end. Thentest the height and square the wreath. The shankends must be worked off as far as necessary parallel tothe new…
