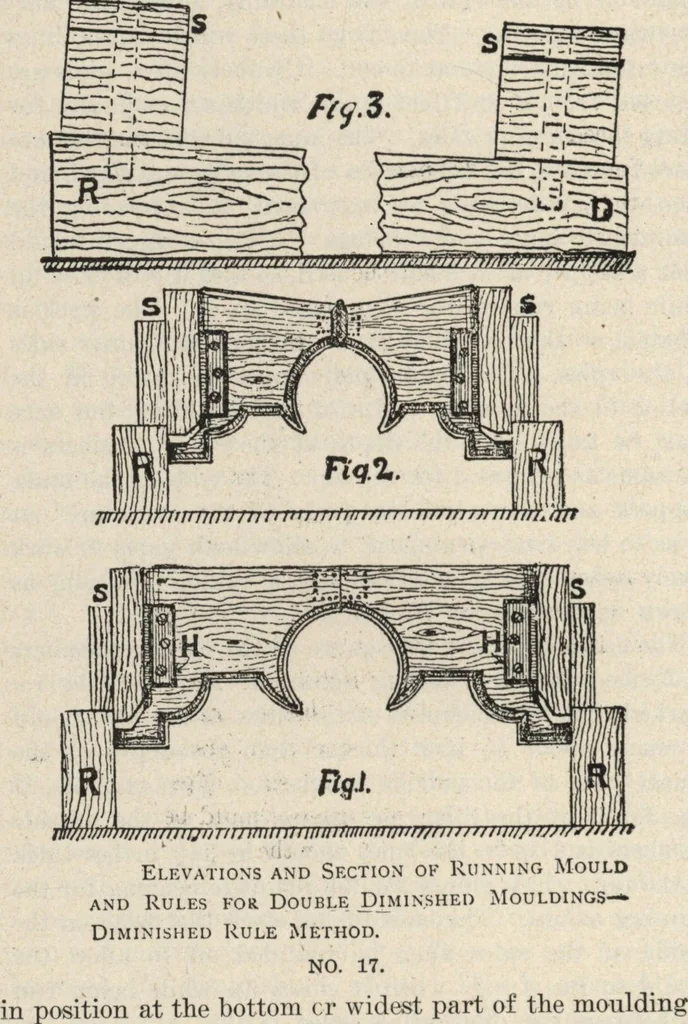

example, ifthe depth of the fillets or square part of the outsidemembers is 1 inch, the rules should be iy2 inches thickat the top. This allows for the requisite bearing for therunning mould. The ends of the stock that bear on theinside of the rules must be rounded off to allow themould to run… … E, R, are sections of the running rules; S, S, the slip- .MKT HODS OF WO UK 211 pers; and H2 H, the hinges which connect the twohalves of the stock to the slippers. The hinge whichconnects the mould in the centre is fixed on the otherside of the stock. Its position is indicated by dottedlines.…
