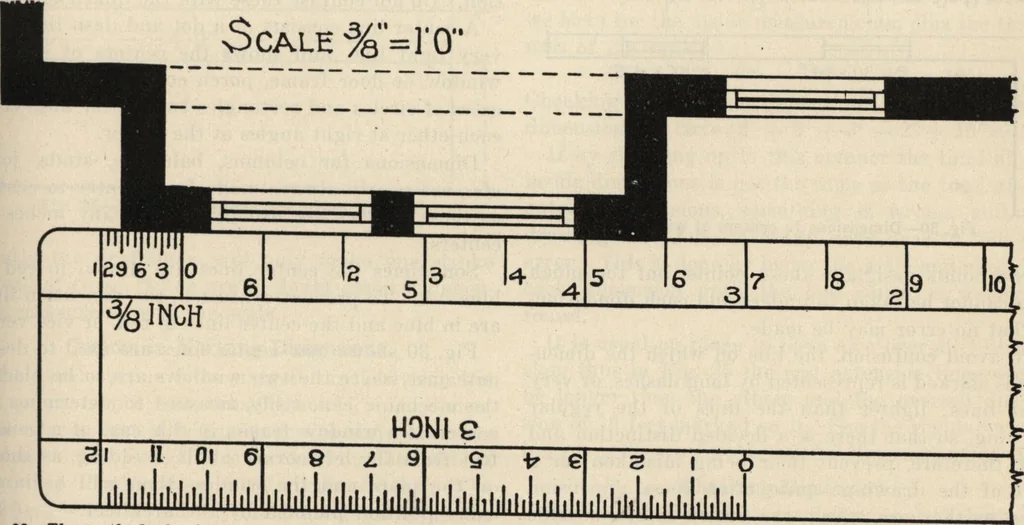

t or triangular in form.Another rule is now on the market which servesbetter for the needs of the mechanic than the scalesmentioned, as it is an ordinary fourfold two-footrule, but on its inner edges, which are beveled, thevarious scales are marked. The marking on these scales is similar to… … II 01 6■lilihlthlililil.l.l. 9 I iiililil.iilJ.i.U S ¥ililiUlil.l.1.1. 3 ~*5 lllllllllllllllllllllll Fig. 29-The method of using a scale to find a dimension on a plan. It shows the outside dimension of bay window is 6 feet 9 inches. The scale to which a drawing is made is nearlyalways stated on the…
