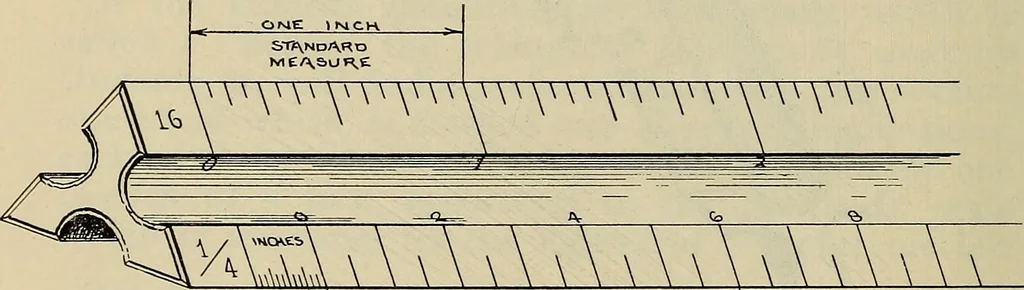

spoken of atthe reduced size, just as they are in the full size, orU. S. Standard. In marking figures on a drawing so as to representfeet and inches they are followed by apostrophes,one of them signifying feet and two of them meaninginches. Thus: 6 feet and 3 inches is written 6-3.The feet and… … VM \ \ \ \ \ \ \ \ \ fa E~erT 3 inchg.s FIG.A2. TOOLS—IN PRACTICE 59 We would lay the scale on the drawing with the ^4scale markings close to and parallel with the line tobe measured, and read the feet in one direction and theinches in the other direction, in both instances startingfrom the zero…
